CLUTCH

CLUTCH

CLUTCH

Brand: Yamaha
Product Code: FZ16-21C5
Availability: In Stock

Price: ---

Available Options

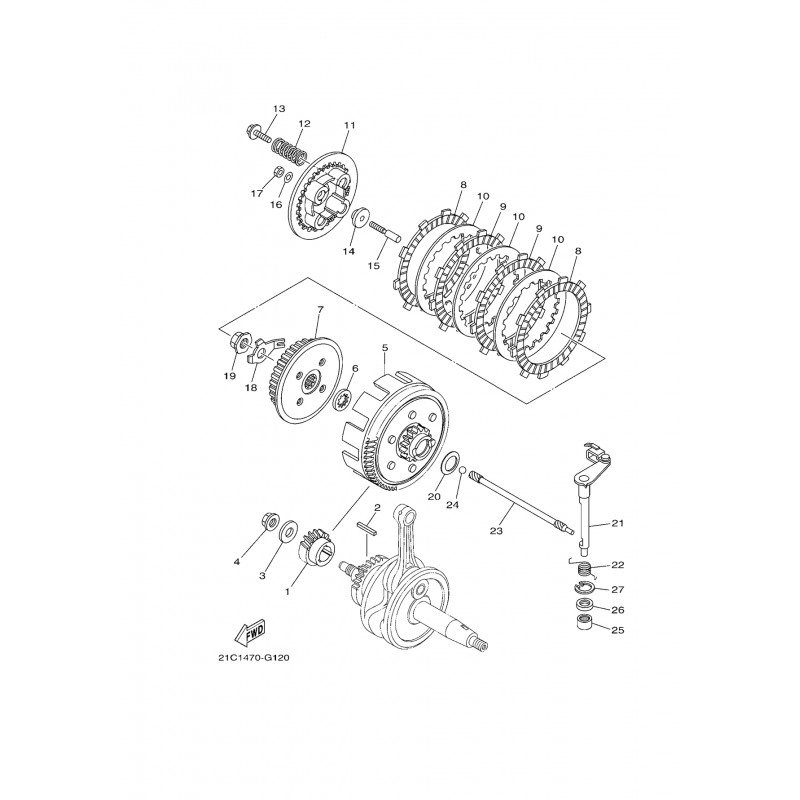

Part ID:	Part Number:	Part Desc:	Remark:	Qty:	Price:
1	21C-E6111-00	GEAR, PRIMARY DRIVE			---
2	21C-E6193-00	KEY, FEATHER			---
3	90201-12019	WASHER, PLATE			---
4	90179-12007	NUT			---
5	21C-E6150-11	PRIMARY DRIVEN GEAR COMP.			---
6	21C-E6154-00	PLATE, THRUST 1			---
7	21C-E6371-00	BOSS, CLUTCH			---
8	21C-E6321-00	PLATE, FRICTION			---
9	21C-E6331-00	PLATE, FRICTION 2			---
10	21C-E6324-00	PLATE, CLUTCH 1			---
11	21C-E6351-00	PLATE, PRESSURE 1			---
12	21C-E6333-00	SPRING, CLUTCH 1			---
13	21C-E6337-00	SCREW, SPRING			---
14	21C-E6358-00	PLATE, PUSH			---
15	21C-E6356-01	ROD, PUSH 1			---
16	3C1-E6144-00	WASHER			---
17	3C1-E6344-00	NUT, ADJUSTING			---
18	21C-16135-00	WASHER, LOCK			---
19	90179-14001	NUT			---
20	90208-20003	WASHER, CONICAL SPRING			---
21	21C-E6380-01	PUSH LEVER ASSY			---
22	21C-16345-10	SPRING, RETURN			---
23	21C-E6357-01	ROD, PUSH 2			---
24	93505-16844	BALL			---
25	93315-112Y9	BEARING			---
26	93102-12877	OIL SEAL			---
27	99009-20500	CIRCLIP			YEN 80.00
