EXHAUST

EXHAUST

EXHAUST

Brand: Yamaha
Product Code: YZFR6-13S1-2
Availability: In Stock

Price: ---

Available Options

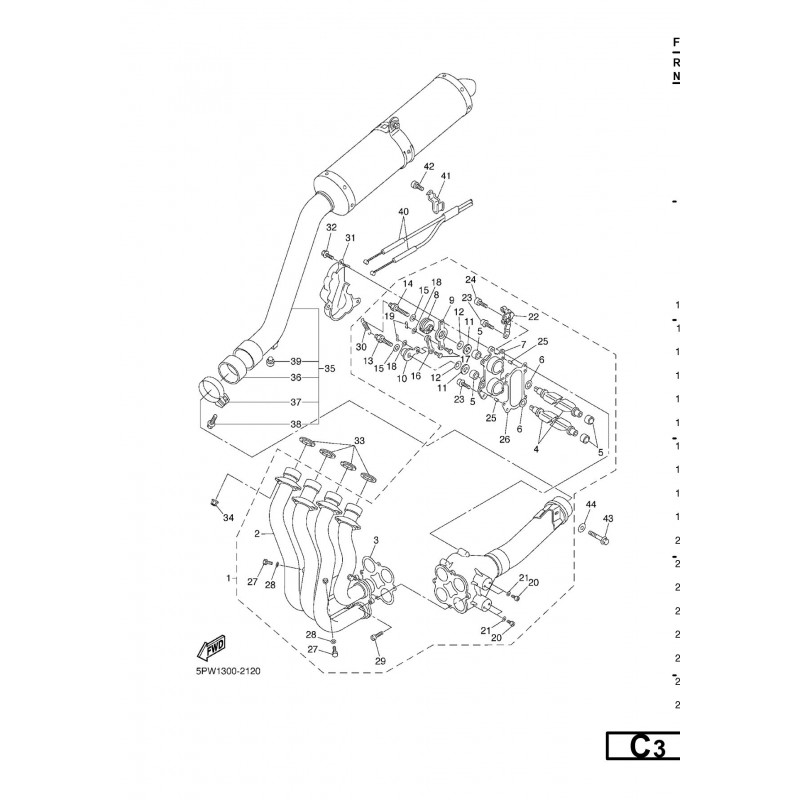

Part ID:	Part Number:	Part Desc:	Remark:	Qty:	Price:
1	5PW-14610-00	EXHAUST PIPE ASSY 1			YEN 214,400.00
2	5PW-14602-00	.EXHAUST PIPE COMP.			---
3	5PW-14623-00	.GASKET, EXHAUST PIPE			---
4	5PW-14821-00	.ARM, SHAFT (VALVE)			---
5	5PW-14638-01	.COLLAR			---
6	90201-14014	.WASHER, PLATE			---
7	5PW-14811-01	.HOUSING			---
8	5PW-14865-00	.PULLEY			---
9	5PW-14889-00	.CAP, CASE			---
10	5PW-14858-00	.CAP, CASE			---
11	90201-10M76	.WASHER, PLATE			---
12	5PW-14683-00	.SPRING, HOOK			---
13	5PW-14684-00	.BOLT, HOOK			---
14	5PW-14777-00	.BOLT			---
15	90201-050T4	.WASHER, PLATE			---
16	5PW-14836-00	.ROD			---
17	5PW-1469V-00	.PIN			---
18	90201-06431	.WASHER, PLATE			---
19	93410-06053	.CIRCLIP			---
20	91380-04006	.BOLT			---
21	92990-04600	.WASHER, PLATE			---
22	5PW-14867-00	.BRACKET			---
23	90119-06115	.BOLT, WITH WASHER			YEN 160.00
24	90110-06025	.BOLT, HEXAGON SOCKET HEAD			---
25	90110-06025	.PIN, DOWEL			---
26	93606-07M17	.GASKET 3			---
27	5PW-14643-00	.BOLT			---
28	97080-06008	.WASHER, PLATE			YEN 80.00
29	92990-06600	.BOLT, HEXAGON SOCKET HEAD			YEN 80.00
30	90506-10003	.SPRING, TENSION			---
31	5PW-14826-00	PROTECTOR, EXHAUST			---
32	90119-06187	BOLT, WITH WASHER			---
33	4FM-14613-00	GASKET, EXHAUST PIPE			YEN 480.00
34	90179-08410	NUT			YEN 160.00
35	5PW-14710-00	MUFFLER ASSY 1			YEN 145,600.00
36	4XV-14714-00	.GASKET, MUFFLER			YEN 2,400.00
37	5JJ-14715-00	.BAND, MUFFLER			YEN 1,440.00
38	95817-08030	.BOLT, FLANGE			---
39	4FM-24181-00	.DAMPER, LOCATING 1			YEN 320.00
40	5PW-1130E-00	CABLE PULLEY ASSY			YEN 8,000.00
41	90462-10013	CLAMP			---
42	91314-06010	BOLT			---
43	95817-08040	BOLT, FLANGE			---
44	90201-08612	WASHER, PLATE			---
