EXHAUST

EXHAUST
EXHAUST
Brand: Yamaha
Product Code: YZFR1-4C88-9
Availability: In Stock
Price: ---

Available Options

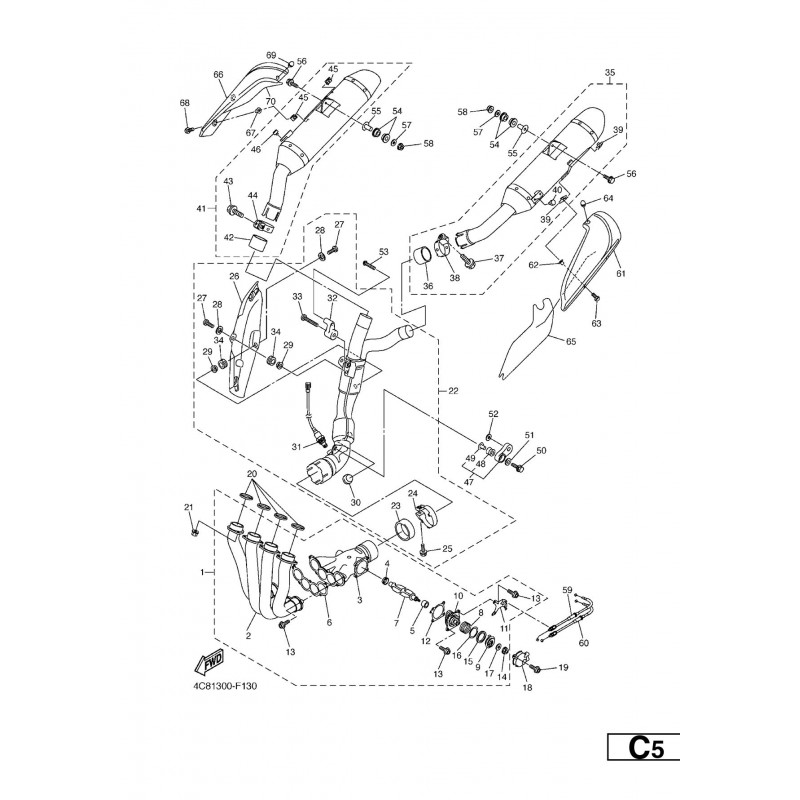

Part ID: Part Number: Part Desc: Remark: Qty: Price:
1 4C8-14610-00 EXHAUST PIPE ASSY 1 ---
2 4C8-14602-00 .EXHAUST PIPE COMP. ---
3 4C8-14615-00 .JOINT, EXHAUST 1 ---
4 5VY-14816-00 .PLUG, BLIND ---
5 5VY-14638-00 .COLLAR ---
6 5VY-14623-00 .GASKET, EXHAUST PIPE ---
7 5VY-14821-00 .ARM, SHAFT (VALVE) ---
8 5VY-14811-00 .HOUSING ---
9 5VY-14865-10 .PULLEY ---
10 5VY-14856-00 .SPRING ---
11 5VY-14867-00 .BRACKET ---
12 5VY-14643-00 .GASKET 3 ---
13 90110-06110 .BOLT, HEXAGON SOCKET HEAD ---
14 90179-06M28 .NUT ---
15 5VY-14648-00 .COLLAR 2 ---
16 5VY-14674-00 .VALVE, PLATE ---
17 92990-06200 .WASHER, PLAIN YEN 80.00
18 5VY-14826-00 PROTECTOR, EXHAUST ---
19 90110-06110 BOLT, HEXAGON SOCKET HEAD ---
20 4FM-14613-00 GASKET, EXHAUST PIPE YEN 480.00
21 90179-08410 NUT YEN 160.00
22 4C8-14740-00 CATALYST ASSY. ---
23 4C8-14755-00 .GASKET, SILENCER ---
24 4C8-14715-00 .BAND, MUFFLER ---
25 95814-08030 .BOLT, FLANGE ---
26 4C8-14738-00 .PROTECTOR, MUFFLER 3 ---
27 92014-06012 .BOLT, BUTTON HEAD ---
28 90201-06079 .WASHER, PLATE ---
29 90387-06188 .COLLAR ---
30 4FM-24181-00 .DAMPER, LOCATING 1 YEN 320.00
31 4C8-8592A-00 .SENSOR, OXYGEN ---
32 4C8-21880-00 .STAY ASSY. ,1 ---
33 90111-08021 .BOLT,HEX. SOCKET BUTTON ---
34 90480-12021 .GROMMET ---
35 4C8-14710-00 MUFFLER ASSY 1 ---
36 5VY-14714-00 .GASKET, MUFFLER YEN 1,040.00
37 90105-08063 .BOLT, FLANGE YEN 320.00
38 5VY-14715-00 .BAND, MUFFLER ---
39 90183-060A2 .NUT, SPRING YEN 160.00
40 90338-06007 .PLUG YEN 480.00
41 4C8-14720-00 MUFFLER ASSY 2 ---
42 5VY-14714-00 .GASKET, MUFFLER YEN 1,040.00
43 90105-08063 .BOLT, FLANGE YEN 320.00
44 3D8-14715-00 .BAND, MUFFLER YEN 2,400.00
45 90183-060A2 .NUT, SPRING YEN 160.00
46 90338-06007 .PLUG YEN 480.00
47 4C8-21890-00 STAY ASSY. ,2 ---
48 5VY-14747-00 .DAMPER, MUFFLER YEN 320.00
49 90387-08021 .COLLAR YEN 480.00
50 95812-08040 BOLT, FLANGE YEN 160.00
51 90201-087G2 WASHER, PLATE YEN 160.00
52 90201-10054 WASHER, PLATE ---
53 90111-08058 BOLT,HEX. SOCKET BUTTON ---
54 5VY-27424-00 DAMPER, FOOTREST 2 ---
55 90387-08020 COLLAR YEN 880.00
56 95814-08045 BOLT, FLANGE YEN 240.00
57 90201-08034 WASHER, PLATE YEN 160.00
58 95604-08200 NUT, U FLANGE YEN 160.00
59 4C8-1133E-01 CABLE, PULLEY 1 ---
60 4C8-1133F-01 CABLE, PULLEY 2 ---
61 4C8-14718-00-P0 PROTECTOR, MUFFLER 1 ---
62 90387-062L2 COLLAR ---
63 90111-06038 BOLT,HEX. SOCKET BUTTON YEN 160.00
64 4C8-14757-00 DAMPER, MUFFLER 2 ---
65 4C8-1475P-00 SEAT ---
66 4C8-14728-00-P0 PROTECTOR, MUFFLER 2 ---
67 90387-062L2 COLLAR ---
68 90111-06038 BOLT,HEX. SOCKET BUTTON YEN 160.00
69 4C8-14757-00 DAMPER, MUFFLER 2 ---
70 4C8-1476P-00 SEAT ---
