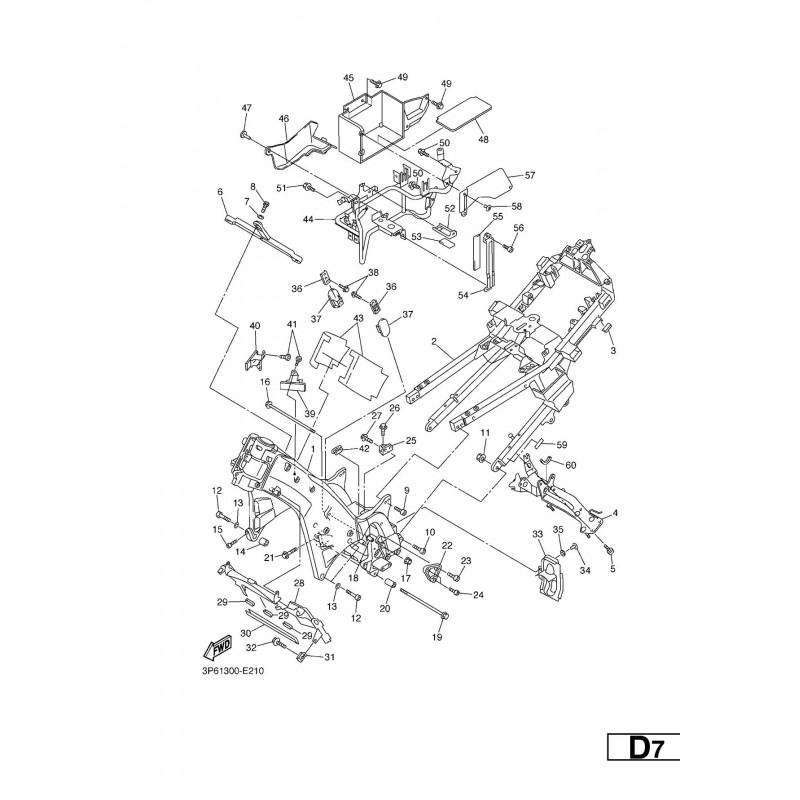

FRAME
Price: ---
Available Options
| Part ID: | Part Number: | Part Desc: | Remark: | Qty: | Price: |
| 1 | 3P6-21110-00 | FRAME COMP. | YEN 299,200.00 | ||
| 2 | 3P6-21190-00 | REAR FRAME COMP. | YEN 101,600.00 | ||
| 3 | 3P6-21652-00 | PROTECTOR | YEN 80.00 | ||
| 4 | 3P6-2115A-00 | MEMBER 1 | YEN 12,800.00 | ||
| 5 | 90149-06022 | SCREW | YEN 240.00 | ||
| 6 | 3P6-21119-00 | CROSS-TUBE | YEN 23,200.00 | ||
| 7 | 90201-100L3 | WASHER, PLATE | YEN 160.00 | ||
| 8 | 95812-10030 | BOLT, FLANGE | YEN 160.00 | ||
| 9 | 90110-08076 | BOLT, HEXAGON SOCKET HEAD | YEN 160.00 | ||
| 10 | 91314-10030 | BOLT | YEN 240.00 | ||
| 11 | 95602-10200 | NUT, U FLANGE | YEN 160.00 | ||
| 12 | 91314-12055 | BOLT | YEN 400.00 | ||
| 13 | 92902-12600 | WASHER, PLATE | YEN 80.00 | ||
| 14 | 90387-1312P | COLLAR | YEN 800.00 | ||
| 15 | 91314-08030 | BOLT | YEN 160.00 | ||
| 16 | 90105-10416 | BOLT, FLANGE | YEN 640.00 | ||
| 17 | 90179-10696 | NUT | YEN 2,400.00 | ||
| 18 | 5EB-21495-00 | BOLT, ENGINE ADJUSTING | YEN 800.00 | ||
| 19 | 90105-10730 | BOLT, FLANGE | YEN 720.00 | ||
| 20 | 90560-10364 | SPACER | YEN 720.00 | ||
| 21 | 95022-08035 | BOLT, FLANGE | YEN 80.00 | ||
| 22 | 3P6-21315-00 | STAY, ENGINE 2 | YEN 720.00 | ||
| 23 | 91314-10020 | BOLT | YEN 160.00 | ||
| 24 | 91314-08016 | BOLT | UR FOR BS4 | YEN 160.00 | |
| 25 | 5JW-21316-00 | STAY, ENGINE 3 | UR FOR DPBMU | YEN 4,800.00 | |
| 26 | 90101-10M05 | BOLT (L=25, P=1.25) | UR FOR DNRM3 | YEN 320.00 | |
| 27 | 90105-08307 | BOLT, FLANGE | YEN 160.00 | ||
| 28 | 3P6-2137Y-00 | GUIDE, AIR | YEN 2,400.00 | ||
| 29 | 3P6-21269-00 | SEAL | YEN 80.00 | ||
| 30 | 3P6-21469-00 | SEAL, AIR | YEN 320.00 | ||
| 31 | 90183-06053 | NUT, SPRING | YEN 240.00 | ||
| 32 | 90119-06172 | BOLT, WITH WASHER | YEN 80.00 | ||
| 33 | 3P6-2147J-00 | COVER, SHAFT 1 | YEN 400.00 | ||
| 34 | 90269-07008 | RIVET | YEN 160.00 | ||
| 35 | 90202-06058 | WASHER, PLATE | YEN 160.00 | ||
| 36 | 5JW-2118U-00 | BRACKET 3 | YEN 720.00 | ||
| 37 | 5JW-2113N-00 | BRACKET, INNER 1 | YEN 1,920.00 | ||
| 38 | 95022-06012 | BOLT, FLANGE | YEN 80.00 | ||
| 39 | 5JW-2113R-00 | BRACKET, INNER 2 | YEN 1,520.00 | ||
| 40 | 5JW-2113R-10 | BRACKET, INNER 2 | YEN 1,520.00 | ||
| 41 | 90149-06304 | SCREW | YEN 80.00 | ||
| 42 | 5JW-2143A-00 | CAP | YEN 1,280.00 | ||
| 43 | 5JW-21852-00 | DAMPER | YEN 560.00 | ||
| 44 | 3P6-28321-00 | STAY 1 | YEN 14,400.00 | ||
| 45 | 3P6-2177G-00 | BOX, BATTERY | YEN 1,680.00 | ||
| 46 | 3P6-2137K-00 | GUIDE, AIR 3 | YEN 1,760.00 | ||
| 47 | 90269-05074 | RIVET | YEN 80.00 | ||
| 48 | 5VX-82122-00 | SEAT, BATTERY | YEN 160.00 | ||
| 49 | 90119-06051 | BOLT, WITH WASHER | YEN 80.00 | ||
| 50 | 95022-06012 | BOLT, FLANGE | YEN 80.00 | ||
| 51 | 95822-06014 | BOLT, FLANGE | YEN 80.00 | ||
| 52 | 5JW-28357-00 | STAY 2 | YEN 960.00 | ||
| 53 | 5JW-28425-00 | DAMPER 3 | YEN 80.00 | ||
| 54 | 5JW-28358-00 | STAY 3 | YEN 560.00 | ||
| 55 | 5JW-28435-00 | DAMPER 4 | S3 | YEN 80.00 | |
| 56 | 91312-06012 | BOLT | S3 | YEN 80.00 | |
| 57 | 5JW-2172W-00 | COVER | S3 | YEN 880.00 | |
| 58 | 90269-06001 | RIVET | YEN 80.00 | ||
| 59 | 5JW-2151A-02 | LABEL 1 | YEN 160.00 | ||
| 60 | 3VD-24188-00 | MOLD, FUEL TANK | YEN 1,280.00 |
