FRAME

FRAME
FRAME
Brand: Yamaha
Product Code: YZFR1-4C88-9
Availability: In Stock
Price: ---

Available Options

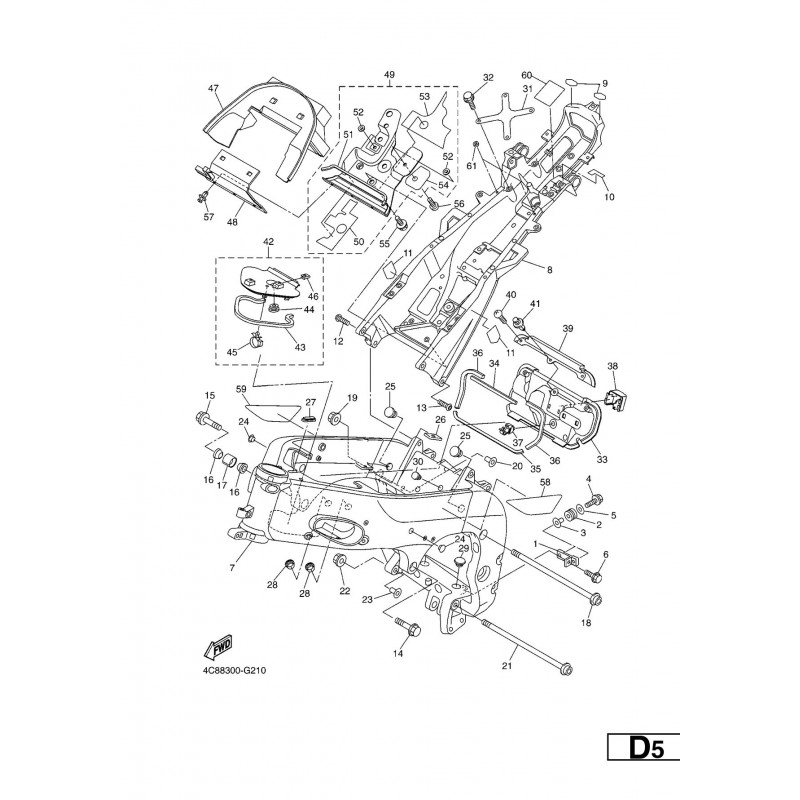

Part ID: Part Number: Part Desc: Remark: Qty: Price:
1 4C8-2116J-00 BRACKET 7 ---
2 90480-14005 GROMMET YEN 80.00
3 90387-063E6 COLLAR YEN 160.00
4 95022-06020 BOLT, FLANGE YEN 80.00
5 90201-06M31 WASHER, PLATE YEN 80.00
6 95024-06012 BOLT, FLANGE YEN 80.00
7 4C8-21110-01 FRAME COMP. ---
8 4C8-21190-00 REAR FRAME COMP. ---
9 5VY-21268-00 SEAL ---
10 5VY-21269-00 SEAL ---
11 4C8-2111D-00 SEAL, 1 ---
12 90149-10043 SCREW ---
13 90149-10039 SCREW ---
14 95024-10050 BOLT, FLANGE ---
15 95024-10050 BOLT, FLANGE ---
16 4B1-21414-00 BOSS, ENGINE MOUNT ---
17 4B1-21424-00 BOSS, ENGINE MOUNT ---
18 90110-10005 BOLT, HEXAGON SOCKET HEAD YEN 800.00
19 90179-10696 NUT YEN 2,400.00
20 4C8-21495-00 BOLT, ENGINE ADJUSTING ---
21 90110-10005 BOLT, HEXAGON SOCKET HEAD YEN 800.00
22 90179-10696 NUT YEN 2,400.00
23 4C8-21495-00 BOLT, ENGINE ADJUSTING ---
24 90338-15004 PLUG YEN 80.00
25 90338-23004 PLUG ---
26 2C0-24182-00 DAMPER, LOCATING 2 YEN 160.00
27 4C8-21773-00 GROMMET ---
28 90338-14007 PLUG ---
29 90338-23004 PLUG ---
30 90338-08008 PLUG ---
31 5VY-21131-00 BRACKET ---
32 95822-06016 BOLT, FLANGE YEN 80.00
33 4C8-2117M-00 COVER 2 ---
34 4C8-2174X-00 DAMPER ---
35 4C8-21746-00 DAMPER ---
36 4C8-2139X-00 DAMPER ---
37 90464-10008 CLAMP ---
38 2C0-8258J-00 HOUSING, CONNECTEUR 1 YEN 720.00
39 4C8-21183-00 PLATE ---
40 90167-05080 SCREW, TAPPING YEN 160.00
41 90269-06081 RIVET YEN 80.00
42 4C8-2110M-10 COVER ASSY 1 ---
43 4C8-2174Y-00 .DAMPER ---
44 90480-01333 .GROMMET ---
45 90464-16006 .CLAMP YEN 80.00
46 90183-06069 .NUT, SPRING YEN 240.00
47 4C8-2110N-00 COVER ASSY 2 ---
48 4C8-2110L-00 COVER ASSY.,4 ---
49 4C8-2110P-00 COVER ASSY 3 ---
50 4C8-2112B-00 .SEAT 1 ---
51 4C8-2113B-00 .DAMPER ---
52 90387-053Y7 .COLLAR ---
53 4C8-2113C-00 .SHEET, 2 ---
54 4C8-2113D-00 .SHEET, 3 ---
55 90109-06043 BOLT ---
56 90111-05002 BOLT,HEX. SOCKET BUTTON YEN 80.00
57 90269-06012 RIVET ---
58 4C8-24121-00 SEAT, KNEE GRIP 1 ---
59 4C8-24122-00 SEAT, KNEE GRIP 2 ---
60 4C8-2118N-00 LABEL ---
61 5SL-84753-00 DAMPER YEN 80.00
