FRONT FORK

FRONT FORK
FRONT FORK
Brand: Yamaha
Product Code: YZFR6-2C01-2
Availability: In Stock
Price: ---

Available Options

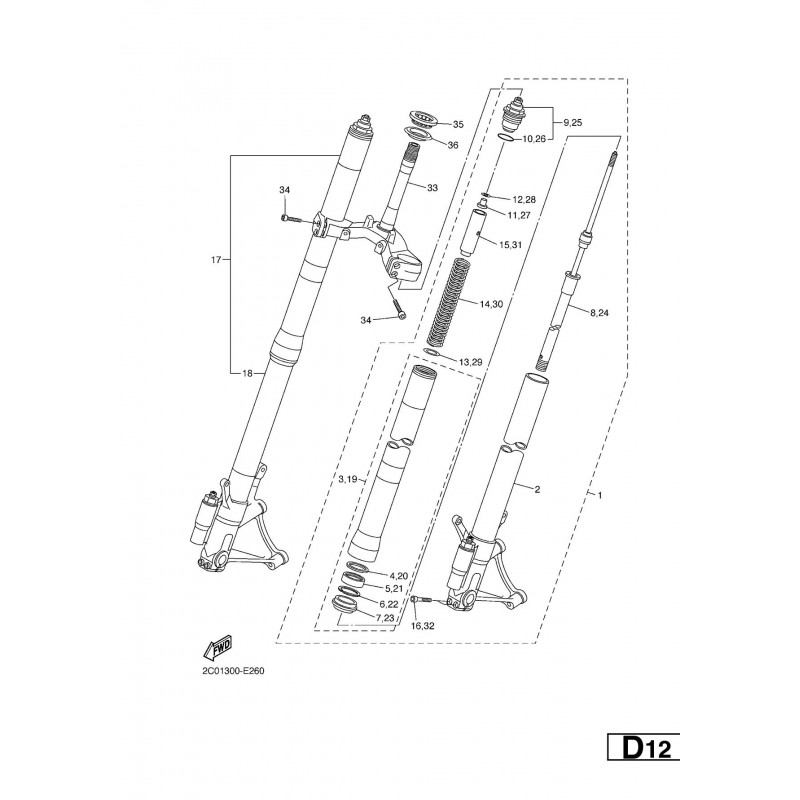

Part ID: Part Number: Part Desc: Remark: Qty: Price:
1 2C0-23102-00 FRONT FORK ASSY (L.H) YEN 94,400.00
2C0-23102-10 FRONT FORK ASSY (L.H) YEN 94,400.00
2 2C0-23110-00 .INNER TUBE COMP.1 YEN 32,000.00
3 2C0-23106-00 .OUTER TUBE COMP. (L.H) YEN 25,600.00
2C0-23106-10 .OUTER TUBE COMP. (L.H) YEN 23,200.00
4 3VD-23115-00 ..GUIDE, COVER UPPER YEN 320.00
5 5VU-23145-00 ..OIL SEAL YEN 880.00
6 3VD-23156-00 ..CLIP, OIL SEAL YEN 160.00
7 3VD-23144-00 ..SEAL, DUST YEN 880.00
8 2C0-23170-00 .CYLINDER COMP., FRONT FORK YEN 48,000.00
9 2C0-23111-00 .BOLT, CAP YEN 15,200.00
10 93210-41N50 ..O-RING YEN 240.00
11 5YU-23393-00 .NUT, SPECIAL YEN 560.00
12 5YU-2332N-00 .PLATE, VALVE 2 YEN 160.00
13 2C0-23143-00 .SEAT, SPRING LOWER YEN 160.00
14 2C0-23141-00 .SPRING, FRONT FORK YEN 3,200.00
15 2C0-2331L-00 .SEAT, SPRING UPPER YEN 800.00
16 91314-08040 .BOLT YEN 160.00
17 2C0-23103-00 FRONT FORK ASSY (R.H) YEN 94,400.00
2C0-23103-10 FRONT FORK ASSY (R.H) YEN 94,400.00
18 2C0-23120-00 .INNER TUBE COMP.2 YEN 32,000.00
19 2C0-23106-00 .OUTER TUBE COMP. (L.H) YEN 25,600.00
2C0-23106-10 .OUTER TUBE COMP. (L.H) YEN 23,200.00
20 3VD-23115-00 ..GUIDE, COVER UPPER YEN 320.00
21 5VU-23145-00 ..OIL SEAL YEN 880.00
22 3VD-23156-00 ..CLIP, OIL SEAL YEN 160.00
23 3VD-23144-00 ..SEAL, DUST YEN 880.00
24 2C0-23170-00 .CYLINDER COMP., FRONT FORK YEN 48,000.00
25 2C0-23111-00 .BOLT, CAP YEN 15,200.00
26 93210-41N50 ..O-RING YEN 240.00
27 5YU-23393-00 .NUT, SPECIAL YEN 560.00
28 5YU-2332N-00 .PLATE, VALVE 2 YEN 160.00
29 2C0-23143-00 .SEAT, SPRING LOWER YEN 160.00
30 2C0-23141-00 .SPRING, FRONT FORK YEN 3,200.00
31 2C0-2331L-00 .SEAT, SPRING UPPER YEN 800.00
32 91314-08040 .BOLT YEN 160.00
33 2C0-23340-00 UNDER BRACKET COMP. YEN 47,200.00
34 91314-08030 BOLT YEN 160.00
35 93399-99957 BEARING YEN 4,800.00
36 3FV-23462-00 SEAL, STEERING YEN 1,520.00
