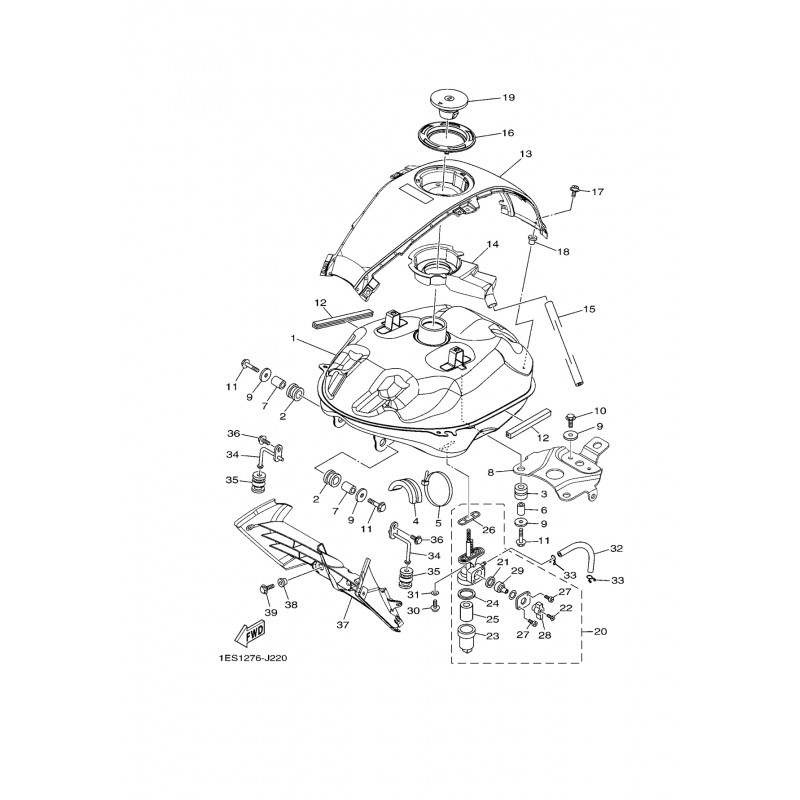

FUEL TANK
Brand: Yamaha
Product Code: FZ16-21C5
Availability: In Stock
Price: ---
Available Options
| Part ID: |
Part Number: |
Part Desc: |
Remark: |
Qty: |
Price: |
| 1 |
21C-F4110-00 |
FUEL TANK COMP. |
|
|
--- |
| 2 |
21C-F4181-00 |
DAMPER, LOCATING 1 |
|
|
--- |
| 3 |
21C-F4182-00 |
DAMPER, LOCATING 2 |
|
|
--- |
| 4 |
21C-F4183-00 |
DAMPER, LOCATING 3 |
|
|
--- |
| 5 |
90464-80802 |
CLAMP |
|
|
--- |
| 6 |
90387-06554 |
COLLAR |
|
|
--- |
| 7 |
90387-107H6 |
COLLAR |
|
|
--- |
| 8 |
21C-F4191-00 |
BRACKET, FUEL TANK 1 |
|
|
--- |
| 9 |
90201-060A3 |
WASHER, PLATE |
|
|
--- |
| 10 |
95807-06012 |
BOLT, FLANGE |
|
|
YEN 80.00 |
| 11 |
95827-06030 |
BOLT, FLANGE |
|
|
YEN 80.00 |
| 12 |
21C-F4188-00 |
MOLD, FUEL TANK |
|
|
--- |
| 13 |
21C-XF17D-00-33 |
COVER, TOP |
|
|
--- |
| 14 |
21C-F414A-00 |
COVER, FILLER |
|
|
--- |
| 15 |
21C-F4318-00 |
PIPE, OVERFLOW |
|
|
--- |
| 16 |
21C-F4614-00-P0 |
PLATE, CAP |
|
|
--- |
| 17 |
90159-05065 |
SCREW, WITH WASHER |
|
|
--- |
| 18 |
90179-05523 |
NUT |
|
|
YEN 320.00 |
| 19 |
21C-WF461-00 |
CAP ASSY WITH LOCK |
|
|
--- |
| 20 |
21C-F4500-00 |
FUEL COCK ASSY 1 |
|
|
--- |
| 21 |
4UU-F4534-00 |
.SEAL, COCK |
|
|
--- |
| 22 |
90149-04242 |
.SCREW |
|
|
--- |
| 23 |
4UU-F4521-00 |
.CUP, FILTER |
|
|
--- |
| 24 |
4UU-F4565-00 |
.GASKET |
|
|
--- |
| 25 |
4UU-F4515-00 |
.NET, FILTER 2 |
|
|
--- |
| 26 |
4UU-F4512-00 |
.GASKET |
|
|
--- |
| 27 |
90157-03802 |
.SCREW, PAN HEAD |
|
|
--- |
| 28 |
4UU-F4524-00 |
.LEVER, COCK |
|
|
--- |
| 29 |
4UU-F4523-00 |
.VALVE |
|
|
--- |
| 30 |
90149-06011 |
SCREW |
|
|
--- |
| 31 |
90202-05807 |
WASHER, PLATE |
|
|
--- |
| 32 |
21C-F4311-00 |
PIPE, FUEL 1 |
|
|
--- |
| 33 |
90467-100A3 |
CLIP |
|
|
--- |
| 34 |
21C-F411G-00 |
HOOK, SIDE COVER 1 |
|
|
--- |
| 35 |
21C-F411J-00 |
DAMPER, SIDE COVER |
|
|
--- |
| 36 |
95807-06012 |
BOLT, FLANGE |
|
|
YEN 80.00 |
| 37 |
21C-F4124-00 |
AIR SHROUD |
|
|
--- |
| 38 |
90387-06048 |
COLLAR |
|
|
YEN 240.00 |
| 39 |
95827-06012 |
BOLT, FLANGE |
|
|
YEN 80.00 |
