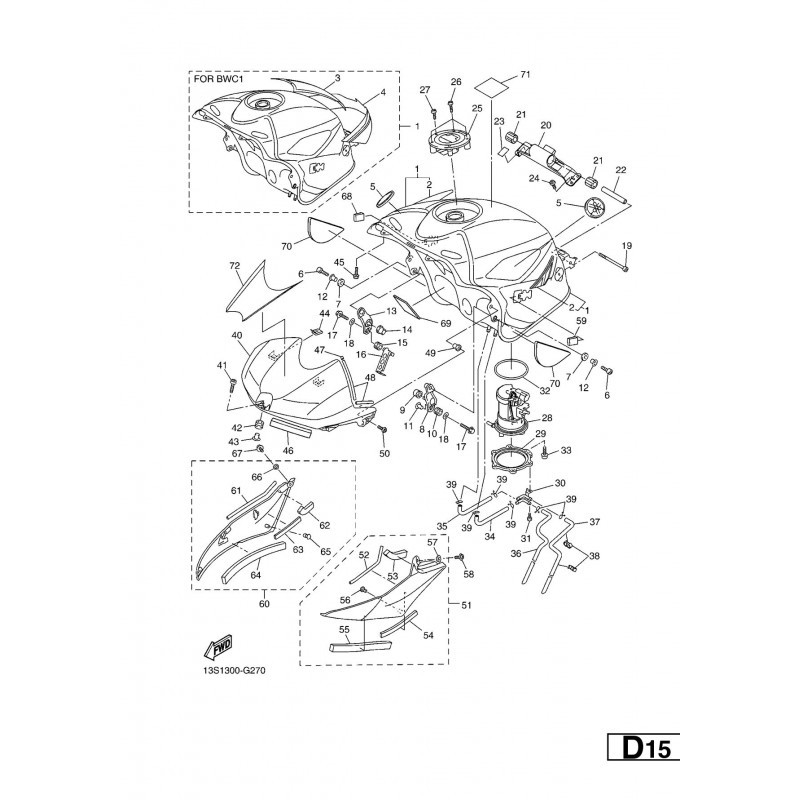

FUEL TANK
Price: ---
Available Options
| Part ID: | Part Number: | Part Desc: | Remark: | Qty: | Price: |
| 1 | 13S-Y2410-00-01 | FUEL TANK COMP. | YEN 89,600.00 | ||
| 13S-Y2410-00-02 | FUEL TANK COMP. | YEN 89,600.00 | |||
| 13S-YK241-00-P2 | FUEL TANK COMP. | YEN 96,000.00 | |||
| 2 | 13S-24240-00 | .GRAPHIC SET | YEN 4,000.00 | ||
| 3 | 13S-24245-00 | .GRAPHIC, FUEL TANK 2 | YEN 4,000.00 | ||
| 4 | 13S-24245-10 | .GRAPHIC, FUEL TANK 2 | YEN 4,000.00 | ||
| 5 | 5SL-2413B-00 | EMBLEM | YEN 1,760.00 | ||
| 6 | 91312-06016 | BOLT | --- | ||
| 7 | 5VY-24183-00 | DAMPER, LOCATING 3 | YEN 160.00 | ||
| 8 | 5VY-24191-00 | BRACKET, FUEL TANK 1 | YEN 800.00 | ||
| 9 | 5VY-24181-00 | DAMPER, LOCATING 1 | YEN 160.00 | ||
| 10 | 90480-10542 | GROMMET | YEN 320.00 | ||
| 11 | 90387-066Y6 | COLLAR | YEN 240.00 | ||
| 12 | 90387-06143 | COLLAR | YEN 400.00 | ||
| 13 | 5VY-24192-00 | BRACKET, FUEL TANK 2 | YEN 800.00 | ||
| 14 | 5VY-24181-00 | DAMPER, LOCATING 1 | YEN 160.00 | ||
| 15 | 90480-10542 | GROMMET | YEN 320.00 | ||
| 16 | 2C0-21339-00 | GUIDE, WIRE | YEN 720.00 | ||
| 17 | 95022-06030 | BOLT, FLANGE | YEN 80.00 | ||
| 18 | 90201-06063 | WASHER, PLATE | YEN 80.00 | ||
| 19 | 91312-06090 | BOLT | YEN 160.00 | ||
| 20 | 2C0-2413Y-00 | BRACKET, TANK FITTING | YEN 3,200.00 | ||
| 21 | 5SL-24183-00 | DAMPER, LOCATING 3 | YEN 240.00 | ||
| 22 | 90387-06055 | COLLAR | YEN 240.00 | ||
| 23 | 2C0-21566-00 | TAPE, 1 | YEN 160.00 | ||
| 24 | 90111-06071 | BOLT,HEX. SOCKET BUTTON | YEN 160.00 | ||
| 25 | 5JJ-24602-00 | CAP ASSY | YEN 15,200.00 | ||
| 26 | 90110-05112 | BOLT, HEXAGON SOCKET HEAD | YEN 160.00 | ||
| 27 | 91312-05010 | BOLT | YEN 80.00 | ||
| 28 | 4C8-13907-00 | FUEL PUMP COMP. | YEN 71,200.00 | ||
| 29 | 13S-24491-00 | BRACKET, FUEL PUMP | YEN 1,760.00 | ||
| 30 | 13S-24135-00 | CLAMP 1 | YEN 1,840.00 | ||
| 31 | 90154-05012 | SCREW, BINDING | YEN 80.00 | ||
| 32 | 5JW-24486-00 | O-RING | YEN 1,760.00 | ||
| 33 | 90110-05028 | BOLT, HEXAGON SOCKET HEAD | YEN 80.00 | ||
| 34 | 13S-24315-00 | PIPE 5 | YEN 560.00 | ||
| 35 | 13S-24316-00 | PIPE 6 | YEN 560.00 | ||
| 36 | 13S-24317-00 | PIPE 7 | YEN 1,040.00 | ||
| 37 | 13S-24313-00 | PIPE 3 | YEN 1,120.00 | ||
| 38 | 90464-09M31 | CLAMP | YEN 160.00 | ||
| 39 | 90467-09006 | CLIP | YEN 160.00 | ||
| 40 | 13S-2171A-00-P0 | COVER, TOP | YEN 15,200.00 | ||
| 13S-2171A-00-P1 | COVER, TOP | YEN 15,200.00 | |||
| 13S-2171A-00-P2 | COVER, TOP | YEN 15,200.00 | |||
| 41 | 90110-06233 | BOLT, HEXAGON SOCKET HEAD | YEN 160.00 | ||
| 42 | 90480-12023 | GROMMET | YEN 160.00 | ||
| 43 | 90387-06203 | COLLAR | YEN 480.00 | ||
| 44 | 90183-05074 | NUT, SPRING | YEN 80.00 | ||
| 45 | 90105-05014 | BOLT, FLANGE | YEN 80.00 | ||
| 46 | 2C0-2414J-00 | DAMPER, PLATE 2 | YEN 80.00 | ||
| 47 | 13S-24181-00 | DAMPER, LOCATING 1 | YEN 160.00 | ||
| 48 | 2C0-2414N-00 | DAMPER, PLATE 4 | YEN 80.00 | ||
| 49 | 90179-05523 | NUT | YEN 320.00 | ||
| 50 | 98902-05014 | SCREW, BIND | YEN 80.00 | ||
| 51 | 13S-24106-00 | TANK SIDE COVER ASSY 1 | YEN 2,400.00 | ||
| 52 | 4C8-2414H-00 | .DAMPER, PLATE 1 | YEN 80.00 | ||
| 53 | 2C0-2414P-00 | .DAMPER, PLATE 5 | YEN 80.00 | ||
| 54 | 4C8-2414J-00 | .DAMPER, PLATE 2 | YEN 80.00 | ||
| 55 | 2C0-24184-00 | .DAMPER, LOCATING 4 | YEN 80.00 | ||
| 56 | 90338-06018 | .PLUG | YEN 240.00 | ||
| 57 | 90387-05035 | .COLLAR | YEN 240.00 | ||
| 58 | 98902-05008 | SCREW, BIND | YEN 80.00 | ||
| 59 | 5PW-2411J-01 | DAMPER, SIDE COVER | YEN 160.00 | ||
| 60 | 13S-24108-00 | TANK SIDE COVER ASSY 2 | YEN 2,400.00 | ||
| 61 | 4C8-2414H-00 | .DAMPER, PLATE 1 | YEN 80.00 | ||
| 62 | 2C0-2414P-00 | .DAMPER, PLATE 5 | YEN 80.00 | ||
| 63 | 4C8-2414J-00 | .DAMPER, PLATE 2 | YEN 80.00 | ||
| 64 | 2C0-24184-00 | .DAMPER, LOCATING 4 | YEN 80.00 | ||
| 65 | 90338-06018 | .PLUG | YEN 240.00 | ||
| 66 | 90387-05035 | .COLLAR | YEN 240.00 | ||
| 67 | 98902-05008 | SCREW, BIND | YEN 80.00 | ||
| 68 | 5PW-2411J-01 | DAMPER, SIDE COVER | YEN 160.00 | ||
| 69 | 13S-24145-00 | DAMPER, SIDE COVER | YEN 160.00 | ||
| 70 | 2C0-24145-00 | DAMPER, SIDE COVER | YEN 320.00 | ||
| 71 | 4C8-21568-00 | LABEL, WARNING | YEN 800.00 | ||
| 72 | 13S-24244-00 | GRAPHIC, FUEL TANK 1 | YEN 3,200.00 |
