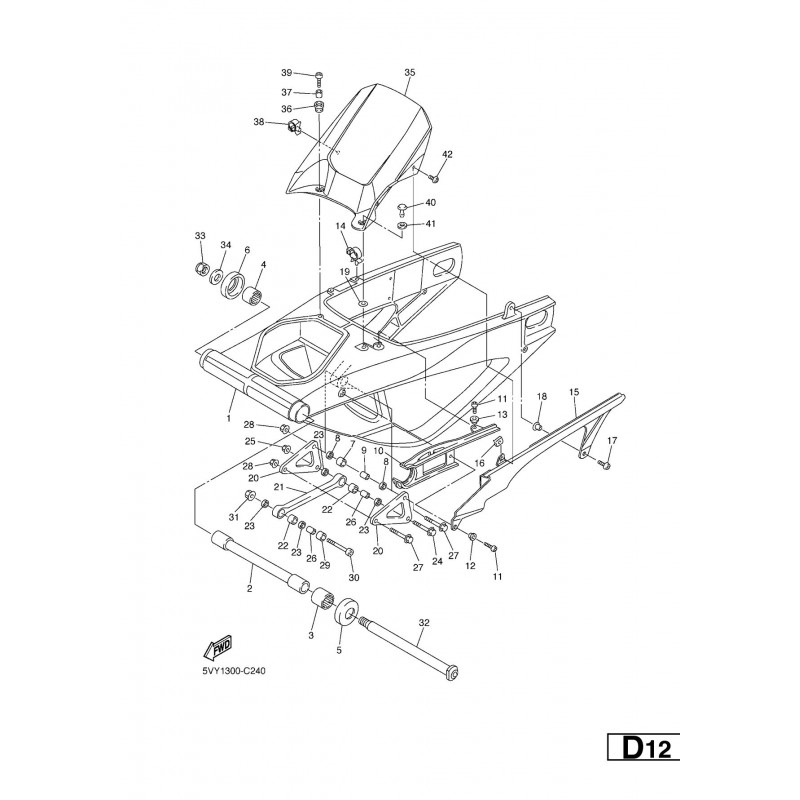

REAR ARM

REAR ARM

REAR ARM

Brand: Yamaha
Product Code: YZFR1-5VY4-5-6
Availability: In Stock

Price: ---

Available Options

Part ID:	Part Number:	Part Desc:	Remark:	Qty:	Price:
1	5VY-22110-00	REAR ARM COMP.			---
2	5VY-22184-00	BUSH			---
3	93317-52865	BEARING			---
4	93317-428U8	BEARING			YEN 3,200.00
5	5VY-22128-00	COVER, THRUST 1			YEN 880.00
6	5VY-22128-10	COVER, THRUST 1			---
7	93315-31758	BEARING			YEN 1,280.00
8	93109-17071	OIL SEAL			YEN 240.00
9	90387-1012A	COLLAR			YEN 480.00
10	5VY-22151-00	SEAL, GUARD			---
11	92017-06016	BOLT, BUTTON HEAD			YEN 80.00
12	90387-062X0	COLLAR			YEN 1,040.00
13	90387-06066	COLLAR			YEN 80.00
14	90464-16011	CLAMP			YEN 240.00
15	5VY-22311-00	CASE, CHAIN			---
16	90183-05076	NUT, SPRING			YEN 160.00
17	90149-06298	SCREW			YEN 240.00
18	90387-07717	COLLAR			YEN 160.00
19	5VY-22873-00	SEAL 1			---
20	5VY-2217A-00	ARM, RELAY			---
21	5VY-2217M-00	ARM 1			---
22	93315-31758	BEARING			YEN 1,280.00
23	93109-17071	OIL SEAL			YEN 240.00
24	90105-10017	BOLT, FLANGE			YEN 960.00
25	95607-10200	NUT, U FLANGE			YEN 240.00
26	90387-1012A	COLLAR			YEN 480.00
27	90105-10017	BOLT, FLANGE			YEN 960.00
28	95607-10200	NUT, U FLANGE			YEN 240.00
29	90387-1013U	COLLAR			YEN 960.00
30	90110-10011	BOLT, HEXAGON SOCKET HEAD			---
31	95607-10200	NUT, U FLANGE			YEN 240.00
32	5VY-22141-00	SHAFT, PIVOT			---
33	90185-18167	NUT, SELF-LOCKING			YEN 640.00
34	90201-18013	WASHER, PLATE			---
35	5VY-21650-00	REAR FENDER COMP.			---
36	90480-12005	GROMMET			YEN 160.00
37	90387-06057	COLLAR			YEN 160.00
38	90464-16012	CLAMP			YEN 240.00
39	90149-06302	SCREW			YEN 240.00
40	90269-08002	RIVET			---
41	5PW-28372-00	DAMPER			---
42	90111-05003	BOLT			YEN 160.00
