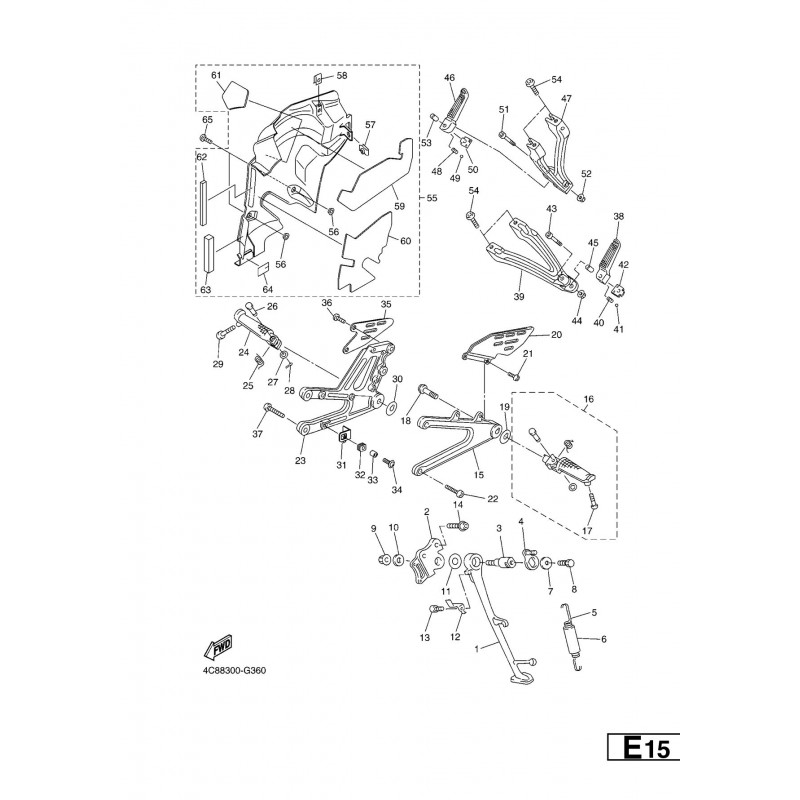

STAND & FOOTREST
Price: ---
Available Options
| Part ID: | Part Number: | Part Desc: | Remark: | Qty: | Price: |
| 1 | 5VY-27311-01 | STAND, SIDE | --- | ||
| 2 | 5JJ-27321-00 | BRACKET, SIDE STAND | YEN 4,000.00 | ||
| 3 | 4NX-27351-00 | GUIDE, SIDE STAND | YEN 4,000.00 | ||
| 4 | 5PW-27352-00 | HOOK, SIDE STAND | YEN 800.00 | ||
| 5 | 90506-18008 | SPRING, TENSION | YEN 560.00 | ||
| 6 | 90445-19002 | HOSE (L60) | YEN 240.00 | ||
| 7 | 90201-081R9 | WASHER, PLATE | YEN 160.00 | ||
| 8 | 90101-08662 | BOLT | YEN 80.00 | ||
| 9 | 95607-10200 | NUT, U FLANGE | YEN 240.00 | ||
| 10 | 90201-101J1 | WASHER, PLATE | YEN 160.00 | ||
| 11 | 90201-146F9 | WASHER, PLATE | YEN 240.00 | ||
| 12 | 5JJ-27315-00 | LINK, SIDE STAND | YEN 320.00 | ||
| 13 | 91317-06012 | BOLT | YEN 80.00 | ||
| 14 | 90109-10002 | BOLT | YEN 320.00 | ||
| 15 | 5VY-27442-01 | BRACKET 2 | --- | ||
| 16 | 5VY-27410-00 | FRONT FOOTREST ASSY (LEFT) | --- | ||
| 17 | 90109-083E0 | .BOLT | --- | ||
| 18 | 90109-103A9 | BOLT | YEN 160.00 | ||
| 19 | 90214-10002 | WASHER, CLAW | --- | ||
| 20 | 4C8-27445-00 | PLATE 1 | --- | ||
| 21 | 90111-06003 | BOLT,HEX. SOCKET BUTTON | YEN 80.00 | ||
| 22 | 90109-085G6 | BOLT | YEN 160.00 | ||
| 23 | 4C8-27443-00 | BRACKET 3 | --- | ||
| 24 | 5JJ-27461-00 | FOOTREST | YEN 4,000.00 | ||
| 25 | 90508-18135 | SPRING, TORSION | YEN 160.00 | ||
| 26 | 90240-08084 | PIN, CLEVIS | YEN 240.00 | ||
| 27 | 90201-080E2 | WASHER, PLATE | --- | ||
| 28 | 91401-25015 | PIN, COTTER | YEN 80.00 | ||
| 29 | 90109-083E0 | BOLT | --- | ||
| 30 | 90201-08103 | WASHER, PLATE | YEN 160.00 | ||
| 31 | 4C8-2144G-00 | STAY, STOP SWITCH | --- | ||
| 32 | 90480-12607 | GROMMET | YEN 480.00 | ||
| 33 | 90387-06023 | COLLAR | YEN 160.00 | ||
| 34 | 90159-06150 | SCREW, WITH WASHER | YEN 160.00 | ||
| 35 | 4C8-27446-00 | PLATE 2 | --- | ||
| 36 | 90111-06064 | BOLT,HEX. SOCKET BUTTON | YEN 80.00 | ||
| 37 | 90109-085G6 | BOLT | YEN 160.00 | ||
| 38 | 5JJ-27431-00 | FOOTREST, REAR 1 | YEN 3,200.00 | ||
| 39 | 5VY-2741L-00 | BRACKET 4 | --- | ||
| 40 | 90501-12743 | SPRING, COMPRESSION | YEN 160.00 | ||
| 41 | 93501-04011 | BALL | YEN 80.00 | ||
| 42 | 5JJ-27437-01 | WASHER, SPECIAL | YEN 240.00 | ||
| 43 | 91314-06035 | BOLT | YEN 80.00 | ||
| 44 | 95604-06200 | NUT, U FLANGE | YEN 160.00 | ||
| 45 | 90387-06697 | COLLAR | YEN 400.00 | ||
| 46 | 5JJ-27441-00 | FOOTREST, REAR 2 | YEN 3,200.00 | ||
| 47 | 5VY-2742L-00 | BRACKET 5 | --- | ||
| 48 | 90501-12743 | SPRING, COMPRESSION | YEN 160.00 | ||
| 49 | 93501-04011 | BALL | YEN 80.00 | ||
| 50 | 5JJ-27437-01 | WASHER, SPECIAL | YEN 240.00 | ||
| 51 | 91314-06035 | BOLT | YEN 80.00 | ||
| 52 | 95604-06200 | NUT, U FLANGE | YEN 160.00 | ||
| 53 | 90387-06697 | COLLAR | YEN 400.00 | ||
| 54 | 91312-08020 | BOLT | --- | ||
| 55 | 4C8-27490-01 | PROTECTOR ASSY | --- | ||
| 56 | 90387-0603J | .COLLAR | --- | ||
| 57 | 90183-05024 | .NUT, SPRING | YEN 160.00 | ||
| 58 | 90183-05076 | .NUT, SPRING | YEN 160.00 | ||
| 59 | 4C8-2749A-00 | .SEAT 3 | --- | ||
| 60 | 4C8-2749B-00 | .SEAT 4 | --- | ||
| 61 | 4C8-2749D-00 | .SEAT 6 | --- | ||
| 62 | 4C8-21486-00 | .DAMPER 2 | --- | ||
| 63 | 4C8-21488-00 | .DAMPER | --- | ||
| 64 | 4C8-2749D-10 | .SEAT 6 | --- | ||
| 65 | 92012-06012 | BOLT, BUTTON HEAD | YEN 80.00 |
