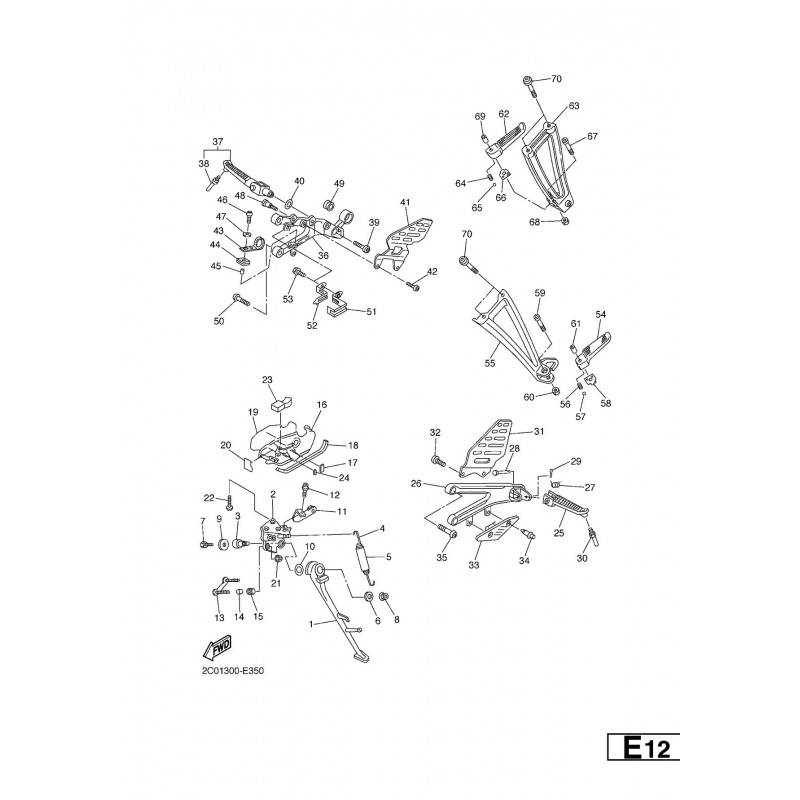

STAND & FOOTREST
Price: ---
Available Options
| Part ID: | Part Number: | Part Desc: | Remark: | Qty: | Price: |
| 1 | 2C0-27311-00 | STAND, SIDE | YEN 15,200.00 | ||
| 2 | 2C0-27321-00 | BRACKET, SIDE STAND | YEN 20,000.00 | ||
| 3 | 2C0-27351-00 | GUIDE, SIDE STAND | YEN 2,400.00 | ||
| 4 | 90506-18008 | SPRING, TENSION | YEN 560.00 | ||
| 5 | 90445-19002 | HOSE (L60) | YEN 240.00 | ||
| 6 | 90201-10035 | WASHER, PLATE | YEN 80.00 | ||
| 7 | 90101-08662 | BOLT | YEN 80.00 | ||
| 8 | 95602-10200 | NUT, SELF-LOCKING | YEN 160.00 | ||
| 9 | 90201-08050 | WASHER, PLATE | YEN 240.00 | ||
| 10 | 90201-146F9 | WASHER, PLATE | YEN 240.00 | ||
| 11 | 2C0-2836F-00 | BRACKET 3 | YEN 640.00 | ||
| 12 | 90105-06020 | BOLT, FLANGE | YEN 80.00 | ||
| 13 | 2C0-27263-00 | BRACKET 1 | YEN 560.00 | ||
| 14 | 90387-05025 | COLLAR | YEN 240.00 | ||
| 15 | 90480-11006 | GROMMET | YEN 160.00 | ||
| 16 | 2C0-27453-00 | COVER 1 | YEN 800.00 | ||
| 17 | 2C0-27414-00 | DAMPER, FOOTREST | YEN 80.00 | ||
| 18 | 2C0-27415-00 | PLATE, FOOTREST | YEN 80.00 | ||
| 19 | 2C0-28428-00 | SEAL 1 | YEN 1,440.00 | ||
| 20 | 2C0-28429-00 | SEAL 2 | YEN 320.00 | ||
| 21 | 90185-05009 | NUT, SELF-LOCKING | YEN 160.00 | ||
| 22 | 90111-08025 | BOLT,HEX. SOCKET BUTTON | YEN 80.00 | ||
| 23 | 2C0-28425-00 | DAMPER 3 | YEN 240.00 | ||
| 24 | 2C0-21485-00 | DAMPER, RUBBER 1 | YEN 80.00 | ||
| 25 | 2C0-27451-00 | FOOTREST | YEN 3,200.00 | ||
| 26 | 2C0-27442-00 | BRACKET 2 | YEN 6,400.00 | ||
| 27 | 90508-18134 | SPRING, TORSION | YEN 160.00 | ||
| 28 | 90240-08084 | PIN, CLEVIS | YEN 240.00 | ||
| 29 | 91402-25015 | PIN, COTTER | YEN 80.00 | ||
| 30 | 2C0-27435-00 | BOLT | YEN 800.00 | ||
| 31 | 2C0-27445-00 | PLATE 1 | YEN 4,000.00 | ||
| 32 | 90149-06233 | SCREW | YEN 80.00 | ||
| 33 | 2C0-27491-00 | PROTECTOR | YEN 320.00 | ||
| 34 | 90269-06008 | RIVET | YEN 80.00 | ||
| 35 | 90109-085G6 | BOLT | YEN 160.00 | ||
| 36 | 2C0-27443-00 | BRACKET 3 | YEN 6,400.00 | ||
| 37 | 2C0-27420-00 | FRONT FOOTREST ASSY (RIGHT) | YEN 8,000.00 | ||
| 38 | 2C0-27435-00 | .BOLT | YEN 800.00 | ||
| 39 | 90109-103A9 | BOLT | YEN 160.00 | ||
| 40 | 90214-13002 | WASHER, CLAW | YEN 320.00 | ||
| 41 | 2C0-27446-00 | PLATE 2 | YEN 5,600.00 | ||
| 42 | 90149-06233 | SCREW | YEN 80.00 | ||
| 43 | 2C0-2144G-00 | STAY, STOP SWITCH | YEN 240.00 | ||
| 44 | 90480-12607 | GROMMET | YEN 480.00 | ||
| 45 | 90387-06023 | COLLAR | YEN 160.00 | ||
| 46 | 92017-06016 | BOLT, BUTTON HEAD | YEN 80.00 | ||
| 47 | 90201-06380 | WASHER, PLATE | YEN 80.00 | ||
| 48 | 90109-066F0 | BOLT | YEN 240.00 | ||
| 49 | 2C0-14747-00 | DAMPER, MUFFLER | YEN 240.00 | ||
| 50 | 90109-085G6 | BOLT | YEN 160.00 | ||
| 51 | 2C0-2116K-00 | BRACKET 8 | YEN 480.00 | ||
| 52 | 2C0-2116L-00 | BRACKET 9 | YEN 240.00 | ||
| 53 | 95024-06012 | BOLT, FLANGE | YEN 80.00 | ||
| 54 | 5JJ-27431-00 | FOOTREST, REAR 1 | YEN 3,200.00 | ||
| 55 | 2C0-2741L-00 | BRACKET 4 | YEN 4,800.00 | ||
| 56 | 90501-12743 | SPRING, COMPRESSION | YEN 160.00 | ||
| 57 | 93501-04011 | BALL | YEN 80.00 | ||
| 58 | 5JJ-27437-01 | WASHER, SPECIAL | YEN 240.00 | ||
| 59 | 91314-06035 | BOLT | YEN 80.00 | ||
| 60 | 95604-06200 | NUT, U FLANGE | YEN 160.00 | ||
| 61 | 90387-06697 | COLLAR | YEN 400.00 | ||
| 62 | 5JJ-27441-00 | FOOTREST, REAR 2 | YEN 3,200.00 | ||
| 63 | 2C0-2742L-00 | BRACKET 5 | YEN 5,600.00 | ||
| 64 | 90501-12743 | SPRING, COMPRESSION | YEN 160.00 | ||
| 65 | 93501-04011 | BALL | YEN 80.00 | ||
| 66 | 5JJ-27437-01 | WASHER, SPECIAL | YEN 240.00 | ||
| 67 | 91314-06035 | BOLT | YEN 80.00 | ||
| 68 | 95604-06200 | NUT, U FLANGE | YEN 160.00 | ||
| 69 | 90387-06697 | COLLAR | YEN 400.00 | ||
| 70 | 90110-08220 | BOLT, HEXAGON SOCKET HEAD | YEN 240.00 |
