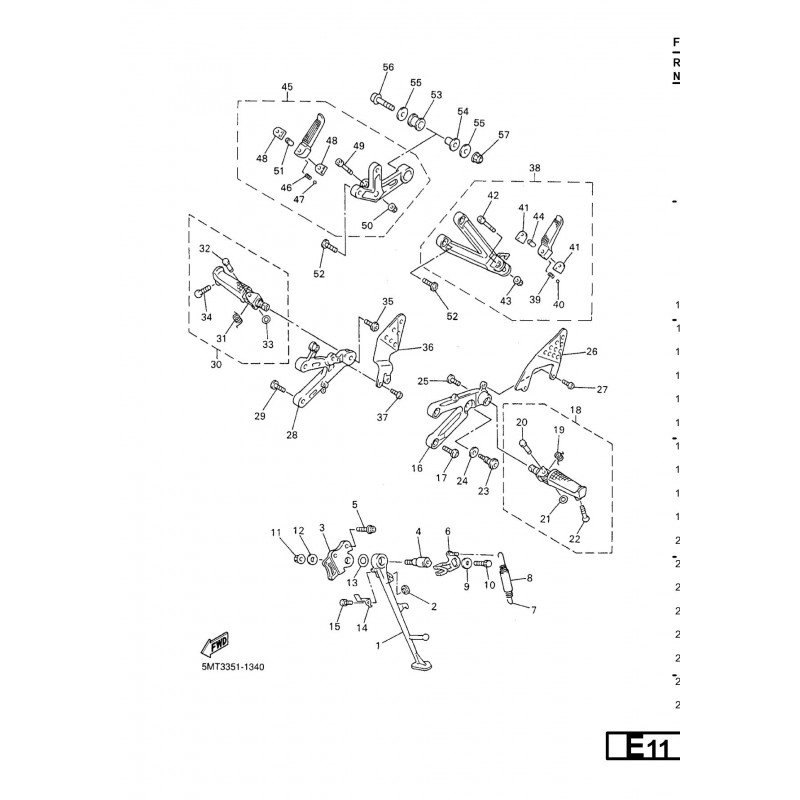

STAND. FOOTREST
Price: ---
Available Options
| Part ID: | Part Number: | Part Desc: | Remark: | Qty: | Price: |
| 1 | 5EB-27311-00 | STAND, SIDE | YEN 5,600.00 | ||
| 2 | 128-27114-00 | STOPPER, MAIN STAND | YEN 160.00 | ||
| 3 | 5JJ-27321-00 | BRACKET, SIDE STAND | YEN 4,000.00 | ||
| 4 | 4NX-27351-00 | GUIDE, SIDE STAND | YEN 4,000.00 | ||
| 5 | 90109-105G7 | BOLT | YEN 80.00 | ||
| 6 | 5GV-27352-00 | HOOK, SIDE STAND | --- | ||
| 7 | 90506-18003 | SPRING, TENSION | YEN 640.00 | ||
| 8 | 90445-19002 | HOSE (L60) | YEN 240.00 | ||
| 9 | 90201-081R9 | WASHER, PLATE | YEN 160.00 | ||
| 10 | 90101-08662 | BOLT | YEN 80.00 | ||
| 11 | 95607-10200 | NUT, SELF-LOCKING | YEN 240.00 | ||
| 12 | 90201-101J1 | WASHER, PLATE | YEN 160.00 | ||
| 13 | 90201-146F9 | WASHER, PLATE | YEN 240.00 | ||
| 14 | 5JJ-27315-00 | LINK, SIDE STAND | YEN 320.00 | ||
| 15 | 90110-06226 | BOLT, HEXAGON SOCKET HEAD | YEN 80.00 | ||
| 16 | 5EB-27442-00 | BRACKET 2 | YEN 4,800.00 | ||
| 17 | 90109-085G6 | BOLT | YEN 160.00 | ||
| 18 | 5MT-27410-00 | FRONT FOOTREST ASSY (LEFT) | YEN 4,000.00 | ||
| 19 | 90508-183B9 | .SPRING, TORSION | YEN 160.00 | ||
| 20 | 90243-08029 | .PIN | YEN 160.00 | ||
| 21 | 90201-06042 | .WASHER, PLATE | YEN 160.00 | ||
| 22 | 90109-08018 | .BOLT | YEN 160.00 | ||
| 23 | 4BP-27434-01 | BOLT | YEN 160.00 | ||
| 24 | 90201-08326 | WASHER, PLATE | YEN 160.00 | ||
| 25 | 90109-103A9 | BOLT | YEN 160.00 | ||
| 26 | 5EB-27445-01 | PLATE 1 | YEN 5,600.00 | ||
| 27 | 90111-06003 | BOLT | YEN 80.00 | ||
| 28 | 5EB-27443-00 | BRACKET 3 | YEN 4,800.00 | ||
| 29 | 90109-085G6 | BOLT | YEN 160.00 | ||
| 30 | 5MT-27420-00 | FRONT FOOTREST ASSY (RIGHT) | YEN 4,800.00 | ||
| 31 | 90508-184B0 | .SPRING, TORSION | YEN 160.00 | ||
| 32 | 90243-08029 | .PIN | YEN 160.00 | ||
| 33 | 90201-06042 | .WASHER, PLATE | YEN 160.00 | ||
| 34 | 90109-08018 | .BOLT | YEN 160.00 | ||
| 35 | 90109-103A9 | BOLT | YEN 160.00 | ||
| 36 | 5EB-27446-01 | PLATE 2 | YEN 5,600.00 | ||
| 37 | 90111-06003 | BOLT | YEN 80.00 | ||
| 38 | 5EB-27430-00 | REAR FOOTREST ASSY 1 | YEN 6,400.00 | ||
| 39 | 90501-12743 | .SPRING, COMPRESSION | YEN 160.00 | ||
| 40 | 93501-04011 | .BALL | YEN 80.00 | ||
| 41 | 1HX-27437-00 | .WASHER, SPECIAL | YEN 240.00 | ||
| 42 | 91314-06045 | .BOLT | YEN 160.00 | ||
| 43 | 95604-06200 | .NUT, U FLANGE | YEN 160.00 | ||
| 44 | 90387-064H8 | .COLLAR | YEN 160.00 | ||
| 45 | 5EB-27440-00 | REAR FOOTREST ASSY 2 | YEN 6,400.00 | ||
| 46 | 90501-12743 | .SPRING, COMPRESSION | YEN 160.00 | ||
| 47 | 93501-04011 | .BALL | YEN 80.00 | ||
| 48 | 1HX-27437-00 | .WASHER, SPECIAL | YEN 240.00 | ||
| 49 | 91314-06045 | .BOLT | YEN 160.00 | ||
| 50 | 95604-06200 | .NUT, U FLANGE | YEN 160.00 | ||
| 51 | 90387-064H8 | .COLLAR | YEN 160.00 | ||
| 52 | 90109-085G6 | BOLT | YEN 160.00 | ||
| 53 | 36Y-27424-00 | DAMPER, FOOTREST 2 | YEN 640.00 | ||
| 54 | 90387-10636 | COLLAR | YEN 320.00 | ||
| 55 | 90201-10669 | WASHER, PLATE | YEN 160.00 | ||
| 56 | 90105-10271 | BOLT, FLANGE | YEN 320.00 | ||
| 57 | 95607-10200 | NUT, SELF-LOCKING | YEN 240.00 |
