WATER PUMP

WATER PUMP

WATER PUMP

Brand: Yamaha
Product Code: YZFR1-5VY7
Availability: In Stock

Price: ---

Available Options

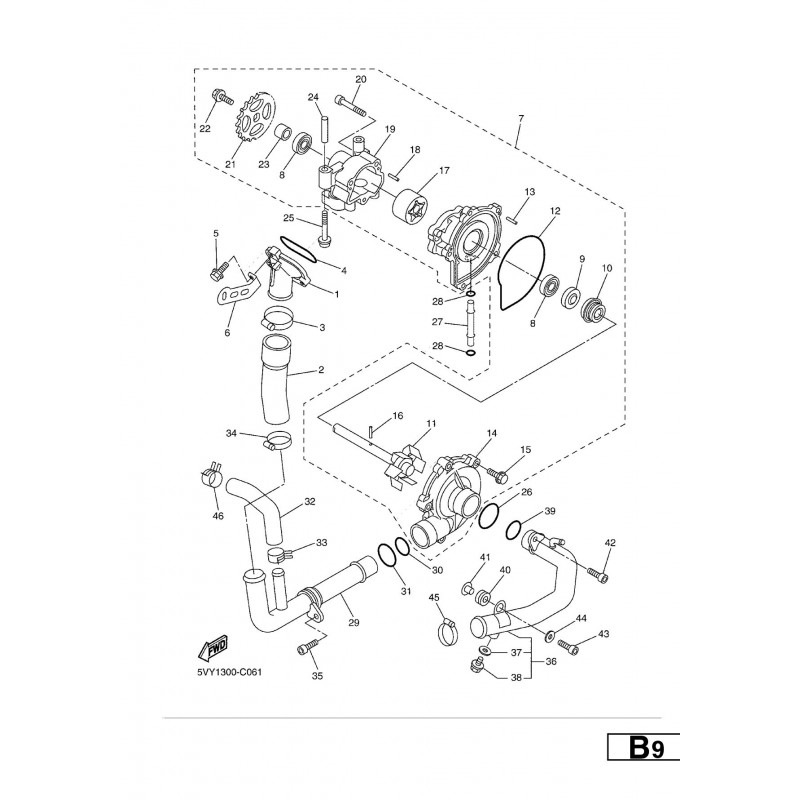

Part ID:	Part Number:	Part Desc:	Remark:	Qty:	Price:
1	5VY-12469-00	JOINT 1			---
2	5VY-12576-00	HOSE 1			---
3	90450-38040	HOSE CLAMP ASSY			YEN 480.00
4	93210-47675	O-RING			YEN 80.00
5	95024-06025	BOLT, FLANGE			YEN 80.00
6	5VY-12637-00	STAY 1			---
7	4C8-12420-00	HOUSING, WATER PUMP			---
8	93306-00106	.BEARING			YEN 880.00
9	93102-12372	.OIL SEAL			YEN 320.00
10	11H-12438-10	.SEAL, MECHANICAL			YEN 1,600.00
11	5VY-12450-00	.IMPELLER SHAFT ASSY			---
12	4XV-12439-00	.O-RING			YEN 720.00
13	93603-12007	.PIN, DOWEL			YEN 160.00
14	5VY-12422-00	.COVER, HOUSING			---
15	90105-06065	.BOLT, FLANGE			YEN 80.00
16	93603-17070	.PIN, DOWEL			YEN 160.00
17	5VY-13310-10	.ROTOR ASSY 1			---
18	93603-12007	.PIN, DOWEL			YEN 160.00
19	5VY-13336-00	.HOUSING, ROTOR			---
20	91312-06040	.BOLT			YEN 80.00
21	5VY-13355-00	.SPROCKET, DRIVEN			---
22	90105-06066	.BOLT, FLANGE			YEN 160.00
23	5VY-12456-10	.WASHER			---
24	91808-30031	PIN, DOWEL			YEN 320.00
25	90110-06026	BOLT, HEXAGON SOCKET HEAD			---
26	93210-357A2	O-RING			YEN 160.00
27	4XV-12485-00	PIPE 5			YEN 320.00
28	93210-06667	O-RING			YEN 160.00
29	5VY-12481-00	PIPE 1			---
30	93210-235A1	O-RING			YEN 240.00
31	93210-27370	O-RING			YEN 320.00
32	5VY-12588-00	HOSE 5			---
33	90467-200A0	CLIP			YEN 400.00
34	90450-32001	HOSE CLAMP ASSY			YEN 480.00
35	90110-06041	BOLT, HEXAGON SOCKET HEAD			YEN 80.00
36	5VY-12484-00	PIPE 4			---
37	90430-06014	.GASKET			YEN 160.00
38	90153-06029	.SCREW, HEXAGON			---
39	93210-235A1	O-RING			YEN 240.00
40	90480-12010	GROMMET			YEN 160.00
41	90387-06087	COLLAR			---
42	90110-06041	BOLT, HEXAGON SOCKET HEAD			YEN 80.00
43	90110-06019	BOLT, HEXAGON SOCKET HEAD			---
44	90201-06055	WASHER, PLATE			---
45	90450-32001	HOSE CLAMP ASSY			YEN 480.00
46	90467-200A0	CLIP			YEN 400.00
