WATER PUMP

WATER PUMP
WATER PUMP
Brand: Yamaha
Product Code: YZFR1-5VYE-F-R-S
Availability: In Stock
Price: ---

Available Options

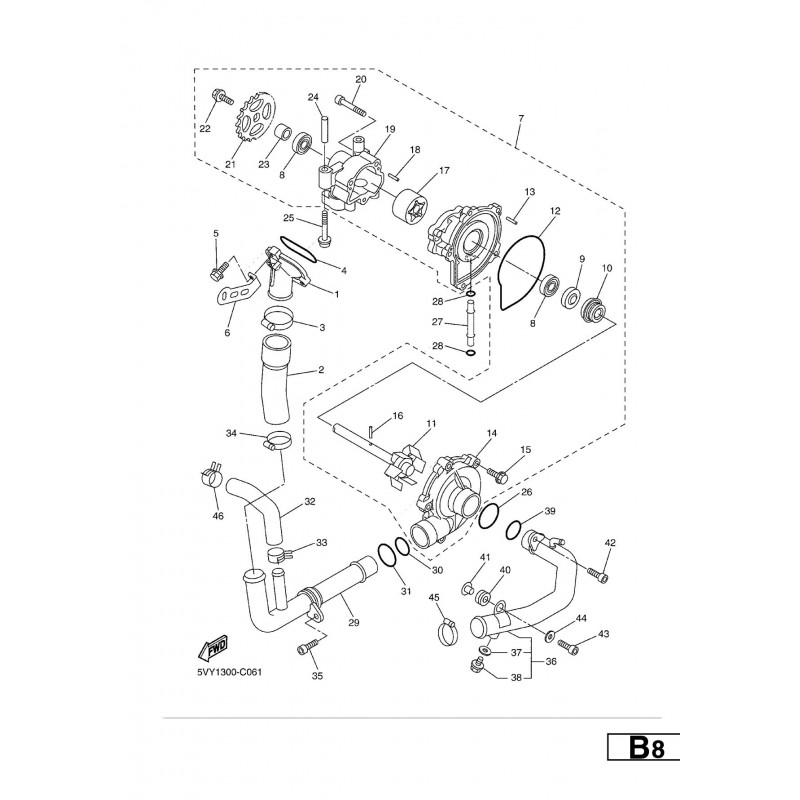

Part ID: Part Number: Part Desc: Remark: Qty: Price:
1 5VY-12469-00 JOINT 1 ---
2 5VY-12576-00 HOSE 1 ---
3 90450-38040 HOSE CLAMP ASSY YEN 480.00
4 93210-47675 O-RING YEN 80.00
5 95024-06025 BOLT, FLANGE YEN 80.00
6 5VY-12637-00 STAY 1 ---
7 4C8-12420-00 HOUSING, WATER PUMP ---
8 93306-00106 .BEARING YEN 880.00
9 93102-12372 .OIL SEAL YEN 320.00
10 11H-12438-10 .SEAL, MECHANICAL YEN 1,600.00
11 5VY-12450-00 .IMPELLER SHAFT ASSY ---
12 4XV-12439-00 .O-RING YEN 720.00
13 93603-12007 .PIN, DOWEL YEN 160.00
14 5VY-12422-00 .COVER, HOUSING ---
15 90105-06065 .BOLT, FLANGE YEN 80.00
16 93603-17070 .PIN, DOWEL YEN 160.00
17 5VY-13310-10 .ROTOR ASSY 1 ---
18 93603-12007 .PIN, DOWEL YEN 160.00
19 5VY-13336-00 .HOUSING, ROTOR ---
20 91312-06040 .BOLT YEN 80.00
21 5VY-13355-00 .SPROCKET, DRIVEN ---
22 90105-06066 .BOLT, FLANGE YEN 160.00
23 5VY-12456-10 .WASHER ---
24 91808-30031 PIN, DOWEL YEN 320.00
25 90110-06167 BOLT, HEXAGON SOCKET HEAD YEN 240.00
26 93210-357A2 O-RING YEN 160.00
27 4XV-12485-00 PIPE 5 YEN 320.00
28 93210-06667 O-RING YEN 160.00
29 5VY-12481-10 PIPE 1 ---
30 93210-235A1 O-RING YEN 240.00
31 93210-27370 O-RING YEN 320.00
32 5VY-12588-00 HOSE 5 ---
33 90467-200A0 CLIP YEN 400.00
34 90450-32001 HOSE CLAMP ASSY YEN 480.00
35 90110-06161 BOLT, HEXAGON SOCKET HEAD ---
36 5VY-12484-10 PIPE 4 ---
37 90430-06014 .GASKET YEN 160.00
38 90153-06002 .SCREW, HEXAGON YEN 80.00
39 93210-235A1 O-RING YEN 240.00
40 90480-12010 GROMMET YEN 160.00
41 90387-06112 COLLAR YEN 160.00
42 90110-06161 BOLT, HEXAGON SOCKET HEAD ---
43 90110-06174 BOLT, HEXAGON SOCKET HEAD ---
44 90201-06079 WASHER, PLATE ---
45 90450-32001 HOSE CLAMP ASSY YEN 480.00
46 90467-200A0 CLIP YEN 400.00
