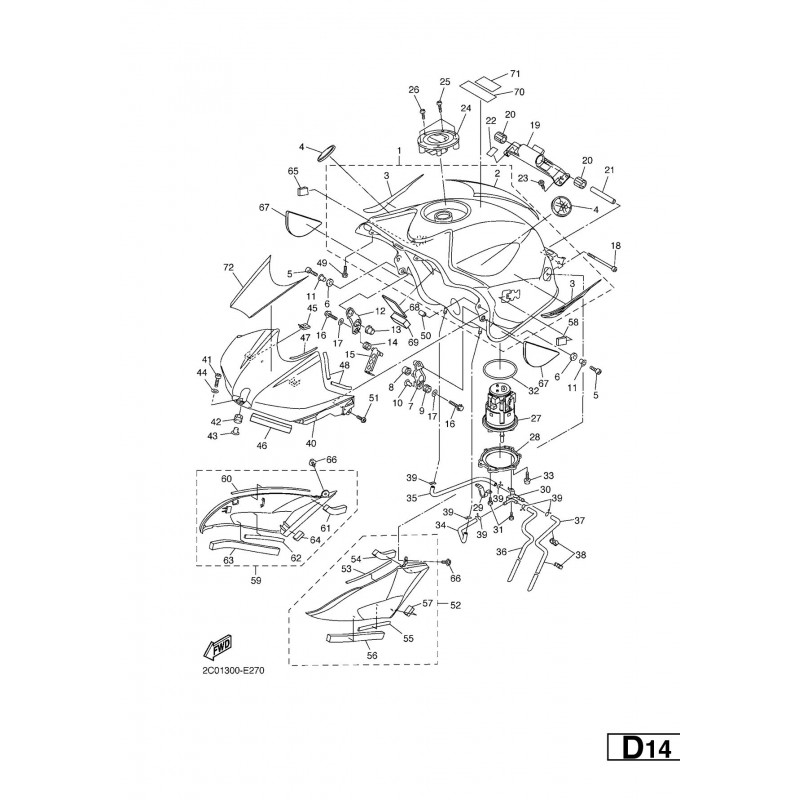

FUEL TANK
Price: ---
Available Options
| Part ID: | Part Number: | Part Desc: | Remark: | Qty: | Price: |
| 1 | 2C0-YK241-00-P0 | FUEL TANK COMP. | YEN 99,200.00 | ||
| 2C0-Y2410-00-01 | FUEL TANK COMP. | YEN 80,800.00 | |||
| 2C0-Y2410-00-02 | FUEL TANK COMP. | YEN 90,400.00 | |||
| 2 | 2C0-24245-00 | .GRAPHIC, FUEL TANK 2 | YEN 3,200.00 | ||
| 3 | 2C0-24240-00 | .GRAPHIC SET | YEN 3,200.00 | ||
| 4 | 5SL-2413B-00 | EMBLEM | YEN 1,760.00 | ||
| 5 | 91317-06016 | BOLT | YEN 80.00 | ||
| 6 | 5VY-24183-00 | DAMPER, LOCATING 3 | YEN 160.00 | ||
| 7 | 5VY-24191-00 | BRACKET, FUEL TANK 1 | YEN 800.00 | ||
| 8 | 5VY-24181-00 | DAMPER, LOCATING 1 | YEN 160.00 | ||
| 9 | 90480-10542 | GROMMET | YEN 320.00 | ||
| 10 | 90387-066Y6 | COLLAR | YEN 240.00 | ||
| 11 | 90387-06143 | COLLAR | YEN 400.00 | ||
| 12 | 5VY-24192-00 | BRACKET, FUEL TANK 2 | YEN 800.00 | ||
| 13 | 5VY-24181-00 | DAMPER, LOCATING 1 | YEN 160.00 | ||
| 14 | 90480-10542 | GROMMET | YEN 320.00 | ||
| 15 | 2C0-21339-00 | GUIDE, WIRE | YEN 720.00 | ||
| 16 | 95027-06030 | BOLT, FLANGE | YEN 80.00 | ||
| 17 | 90201-06063 | WASHER, PLATE | YEN 80.00 | ||
| 18 | 91317-06090 | BOLT | YEN 240.00 | ||
| 19 | 2C0-2413Y-00 | BRACKET, TANK FITTING | YEN 3,200.00 | ||
| 20 | 5SL-24183-00 | DAMPER, LOCATING 3 | YEN 240.00 | ||
| 21 | 90387-06055 | COLLAR | YEN 240.00 | ||
| 22 | 2C0-21566-00 | TAPE, 1 | YEN 160.00 | ||
| 23 | 90111-06038 | BOLT,HEX. SOCKET BUTTON | YEN 160.00 | ||
| 24 | 5JJ-24602-00 | CAP ASSY | YEN 15,200.00 | ||
| 25 | 90110-05112 | BOLT, HEXAGON SOCKET HEAD | YEN 160.00 | ||
| 26 | 91317-05010 | BOLT | YEN 80.00 | ||
| 27 | 2C0-13907-00 | FUEL PUMP COMP. | YEN 72,000.00 | ||
| 28 | 2C0-24491-00 | BRACKET, FUEL PUMP | YEN 5,600.00 | ||
| 29 | 5PW-24192-00 | BRACKET, FUEL TANK 2 | YEN 560.00 | ||
| 30 | 2C0-24135-00 | CLAMP 1 | YEN 1,600.00 | ||
| 31 | 90154-05012 | SCREW, BINDING | YEN 80.00 | ||
| 32 | 5JW-24486-00 | O-RING | YEN 1,760.00 | ||
| 33 | 90110-05014 | BOLT, HEXAGON SOCKET HEAD | YEN 80.00 | ||
| 34 | 2C0-24315-00 | PIPE 5 | YEN 320.00 | ||
| 35 | 2C0-24316-00 | PIPE 6 | YEN 480.00 | ||
| 36 | 2C0-24317-00 | PIPE 7 | YEN 1,040.00 | ||
| 37 | 2C0-24313-00 | PIPE 3 | YEN 960.00 | ||
| 38 | 90464-09M31 | CLAMP | YEN 160.00 | ||
| 39 | 90467-09006 | CLIP | YEN 160.00 | ||
| 40 | 2C0-2171A-00-P0 | COVER, TOP | YEN 19,200.00 | ||
| 2C0-2171A-00-P1 | COVER, TOP | YEN 19,200.00 | |||
| 2C0-2171A-00-P2 | COVER, TOP | YEN 19,200.00 | |||
| 41 | 91314-06025 | BOLT | YEN 80.00 | ||
| 42 | 90480-12314 | GROMMET | YEN 80.00 | ||
| 43 | 90387-065J6 | COLLAR | YEN 160.00 | ||
| 44 | 90201-06M30 | WASHER, PLATE | YEN 160.00 | ||
| 45 | 90183-05074 | NUT, SPRING | YEN 80.00 | ||
| 46 | 2C0-2414J-00 | DAMPER, PLATE 2 | YEN 80.00 | ||
| 47 | 2C0-2414K-00 | DAMPER, PLATE 3 | YEN 80.00 | ||
| 48 | 2C0-2414N-00 | DAMPER, PLATE 4 | YEN 80.00 | ||
| 49 | 90105-05002 | BOLT, FLANGE | YEN 80.00 | ||
| 50 | 90179-05523 | NUT | YEN 320.00 | ||
| 51 | 98907-05014 | SCREW, BIND | YEN 80.00 | ||
| 52 | 2C0-24106-00 | TANK SIDE COVER ASSY 1 | YEN 4,800.00 | ||
| 53 | 2C0-2414H-00 | .DAMPER, PLATE 1 | YEN 80.00 | ||
| 54 | 2C0-2414P-00 | .DAMPER, PLATE 5 | YEN 80.00 | ||
| 55 | 5PW-2414J-00 | .DAMPER, PLATE 2 | YEN 80.00 | ||
| 56 | 2C0-24184-00 | .DAMPER, LOCATING 4 | YEN 80.00 | ||
| 57 | 2C0-2414R-00 | .DAMPER, PLATE 6 | YEN 160.00 | ||
| 58 | 5PW-2411J-01 | DAMPER, SIDE COVER | YEN 160.00 | ||
| 59 | 2C0-24108-00 | TANK SIDE COVER ASSY 2 | YEN 4,800.00 | ||
| 60 | 2C0-2414H-00 | .DAMPER, PLATE 1 | YEN 80.00 | ||
| 61 | 2C0-2414P-00 | .DAMPER, PLATE 5 | YEN 80.00 | ||
| 62 | 5PW-2414J-00 | .DAMPER, PLATE 2 | YEN 80.00 | ||
| 63 | 2C0-24184-00 | .DAMPER, LOCATING 4 | YEN 80.00 | ||
| 64 | 2C0-2414R-00 | .DAMPER, PLATE 6 | YEN 160.00 | ||
| 65 | 5PW-2411J-01 | DAMPER, SIDE COVER | YEN 160.00 | ||
| 66 | 90159-05015 | SCREW, WITH WASHER | YEN 80.00 | ||
| 67 | 2C0-24145-00 | DAMPER, SIDE COVER | YEN 320.00 | ||
| 68 | 5EJ-2414H-00 | DAMPER, PLATE 1 | YEN 160.00 | ||
| 69 | 5JX-21732-00 | SEAL 1 | YEN 80.00 | ||
| 70 | 5PA-21568-00 | LABEL, WARNING | YEN 240.00 | ||
| 71 | 5PW-2415E-01 | LABEL, CAUTION | YEN 160.00 | ||
| 72 | 2C0-24244-00 | GRAPHIC, FUEL TANK 1 | YEN 3,200.00 |
