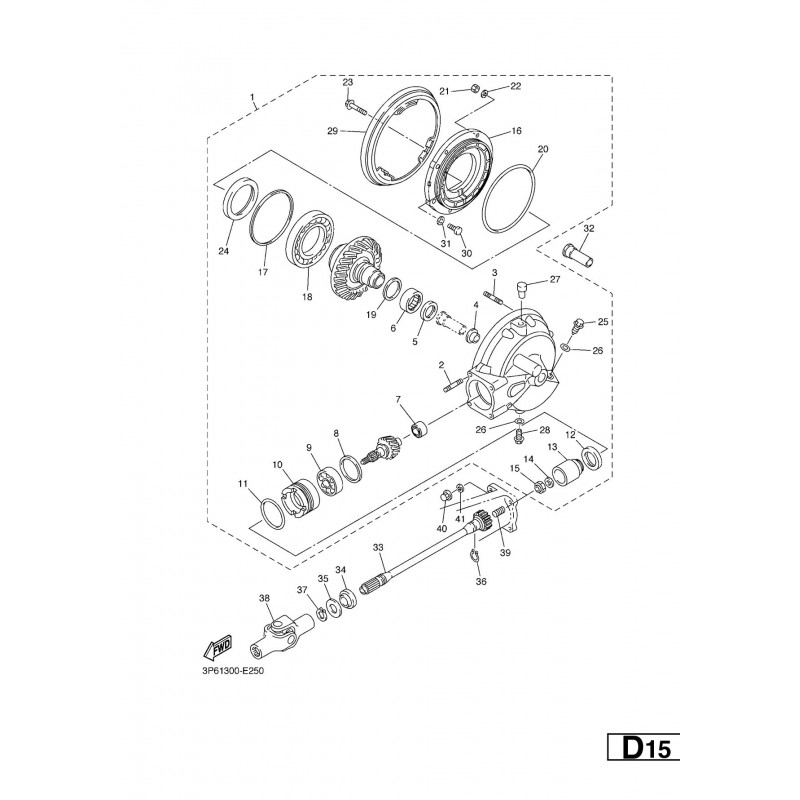

DRIVE SHAFT
Price: ---
Available Options
| Part ID: | Part Number: | Part Desc: | Remark: | Qty: | Price: |
| 1 | 3P6-W4612-01 | REAR AXLE GEAR CASE ASSY | YEN 124,800.00 | ||
| 2 | 90116-10010 | .BOLT, STUD | YEN 400.00 | ||
| 3 | 90116-08025 | .BOLT, STUD | YEN 160.00 | ||
| 4 | 5JW-46153-00 | .COLLAR, GUIDE | YEN 1,360.00 | ||
| 5 | 93101-30084 | .OIL SEAL | YEN 480.00 | ||
| 6 | 93311-43729 | .BEARING | YEN 4,800.00 | ||
| 7 | 2H7-46102-00 | .BEARING ASSY | YEN 2,400.00 | ||
| 8 | 1J7-17537-Y0-30 | .SHIM, THRUST (0.30T) | YEN 160.00 | ||
| 1J7-17537-Y0-40 | .SHIM, THRUST (0.40T) | YEN 160.00 | |||
| 1J7-17537-Y0-50 | .SHIM, THRUST (0.50T) | YEN 160.00 | |||
| 9 | 93306-30533 | .BEARING | YEN 9,600.00 | ||
| 10 | 4H7-46125-00 | .RETAINER, BEARING | YEN 1,840.00 | ||
| 11 | 93210-60426 | .O-RING | YEN 320.00 | ||
| 12 | 93101-38001 | .OIL SEAL | YEN 480.00 | ||
| 13 | 3P6-46123-01 | .COUPLING, GEAR | YEN 8,800.00 | ||
| 14 | 90201-166R5 | .WASHER, PLATE | YEN 800.00 | ||
| 15 | 90179-16010 | .NUT | YEN 1,120.00 | ||
| 16 | 3P6-46152-00 | .HOUSING, BEARING | YEN 8,800.00 | ||
| 17 | 1J7-46117-Y0-25 | .SHIM, RING GEAR (0.25T) | YEN 240.00 | ||
| 1J7-46117-Y0-30 | .SHIM, RING GEAR (0.30T) | YEN 240.00 | |||
| 1J7-46117-Y0-40 | .SHIM, RING GEAR (0.40T) | YEN 240.00 | |||
| 1J7-46117-Y0-50 | .SHIM, RING GEAR (0.50T) | YEN 240.00 | |||
| 18 | 93316-01403 | .BEARING | YEN 5,600.00 | ||
| 19 | 22U-46118-00-12 | .SHIM, THRUST (1.2T) | YEN 320.00 | ||
| 22U-46118-00-14 | .SHIM, THRUST (1.4T) | YEN 320.00 | |||
| 22U-46118-00-16 | .SHIM, THRUST (1.6T) | YEN 320.00 | |||
| 22U-46118-00-18 | .SHIM, THRUST (1.8T) | YEN 320.00 | |||
| 19 | 22U-46118-00-20 | .SHIM, THRUST (2.0T) | YEN 320.00 | ||
| 20 | 93211-54698 | .O-RING | YEN 960.00 | ||
| 21 | 95312-08600 | .NUT | YEN 160.00 | ||
| 22 | 90204-08001 | .WASHER, SPRING | YEN 80.00 | ||
| 23 | 95812-10050 | .BOLT, FLANGE | YEN 240.00 | ||
| 24 | 93102-70167 | .OIL SEAL | YEN 880.00 | ||
| 25 | 90340-14132 | .PLUG, STRAIGHT SCREW | YEN 160.00 | ||
| 26 | 214-11198-01 | .GASKET | YEN 160.00 | ||
| 27 | 2H7-17590-00 | .BREATHER COMP. | YEN 560.00 | ||
| 28 | 90340-14004 | .PLUG, STRAIGHT SCREW | YEN 640.00 | ||
| 29 | 1FK-46154-00 | .COVER, HOUSING | YEN 1,680.00 | ||
| 30 | 1FK-46156-00 | .STOPPER, RING GEAR | YEN 960.00 | ||
| 31 | 1FK-46157-00-15 | .SHIM, STOPPER (T=0.15) | YEN 80.00 | ||
| 1FK-46157-00-20 | .SHIM, STOPPER (T=0.20) | YEN 80.00 | |||
| 32 | 5VS-4615A-00 | COLLAR, GUIDE 1 | YEN 3,200.00 | ||
| 33 | 3P6-46172-00 | SHAFT, DRIVE | YEN 15,200.00 | ||
| 34 | 93108-43001 | OIL SEAL | YEN 1,520.00 | ||
| 35 | 90201-23008 | WASHER, PLATE | YEN 160.00 | ||
| 36 | 93410-23056 | CIRCLIP | YEN 80.00 | ||
| 37 | 93410-22039 | CIRCLIP | YEN 80.00 | ||
| 38 | 5JW-46180-00 | CROSS JOINT COMP. | YEN 26,400.00 | ||
| 39 | 90501-16491 | SPRING, COMPRESSION | YEN 160.00 | ||
| 40 | 90176-10075 | NUT, CROWN | YEN 320.00 | ||
| 41 | 92990-10600 | WASHER, PLATE | YEN 80.00 |
