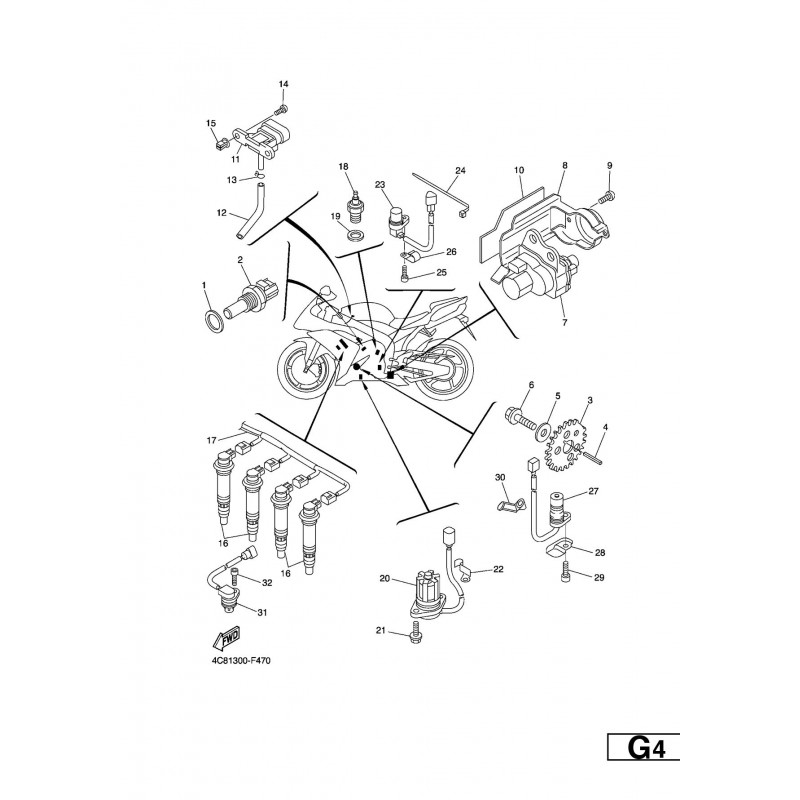

| Part ID: |
Part Number: |
Part Desc: |
Remark: |
Qty: |
Price: |
| 1 |
90201-12790 |
WASHER, PLATE |
|
|
YEN 160.00 |
| 2 |
8CC-85790-01 |
THERMOSENSOR ASSY |
|
|
YEN 4,800.00 |
| 3 |
2D1-81673-00 |
ROTOR |
|
|
--- |
| 4 |
90282-03001 |
KEY, STRAIGHT |
|
|
--- |
| 5 |
90201-10039 |
WASHER, PLATE |
|
|
--- |
| 6 |
90105-10290 |
BOLT, FLANGE |
|
|
YEN 400.00 |
| 7 |
5VY-85820-10 |
SERVO MOTOR ASSY |
|
|
--- |
| 8 |
4C8-85829-01 |
COVER, SERVO MOTOR |
|
|
--- |
| 9 |
97702-50520 |
SCREW, TAPPING |
|
|
--- |
| 10 |
4C8-1479P-00 |
SEAT 5 |
|
|
--- |
| 11 |
1C7-82380-00 |
SENSOR, PRESSURE |
|
|
--- |
| 12 |
90445-08028 |
HOSE |
|
|
YEN 80.00 |
| 13 |
90467-08021 |
CLIP |
|
|
YEN 160.00 |
| 14 |
97702-60520 |
SCREW, TAPPING |
|
|
--- |
| 15 |
90338-08226 |
PLUG |
|
|
YEN 80.00 |
| 16 |
4C8-82310-00 |
IGNITION COIL ASSY |
|
|
--- |
| 17 |
4C8-82309-00 |
WIRE, SUB LEAD |
|
|
--- |
| 18 |
3GB-82540-01 |
NEUTRAL SWITCH ASSY |
|
|
YEN 1,360.00 |
| 19 |
90430-10148 |
GASKET |
|
|
YEN 160.00 |
| 20 |
5VY-85720-00 |
OIL LEVEL GAUGE ASSY |
|
|
--- |
| 21 |
95022-06016 |
BOLT, FLANGE |
|
|
YEN 80.00 |
| 22 |
90465-08053 |
CLAMP |
|
|
YEN 160.00 |
| 23 |
4XV-83755-03 |
SENSOR, SPEED |
|
|
--- |
| 24 |
90464-51001 |
CLAMP |
|
|
--- |
| 25 |
90110-06161 |
BOLT, HEXAGON SOCKET HEAD |
|
|
--- |
| 26 |
90462-08057 |
CLAMP |
|
|
--- |
| 27 |
5VY-81670-01 |
PICK-UP ASSY |
|
|
--- |
| 28 |
4C8-15589-00 |
PLATE, CLUTCH COVER |
|
|
--- |
| 29 |
90110-06161 |
BOLT, HEXAGON SOCKET HEAD |
|
|
--- |
| 30 |
90465-08054 |
CLAMP |
|
|
--- |
| 31 |
5VY-85896-00 |
SENSOR, CAM POSITION |
|
|
YEN 9,600.00 |
| 32 |
90110-06175 |
BOLT, HEXAGON SOCKET HEAD |
|
|
--- |
