CLUTCH

CLUTCH

CLUTCH

Brand: Yamaha
Product Code: YZFR1-14BR-S
Availability: In Stock

Price: ---

Available Options

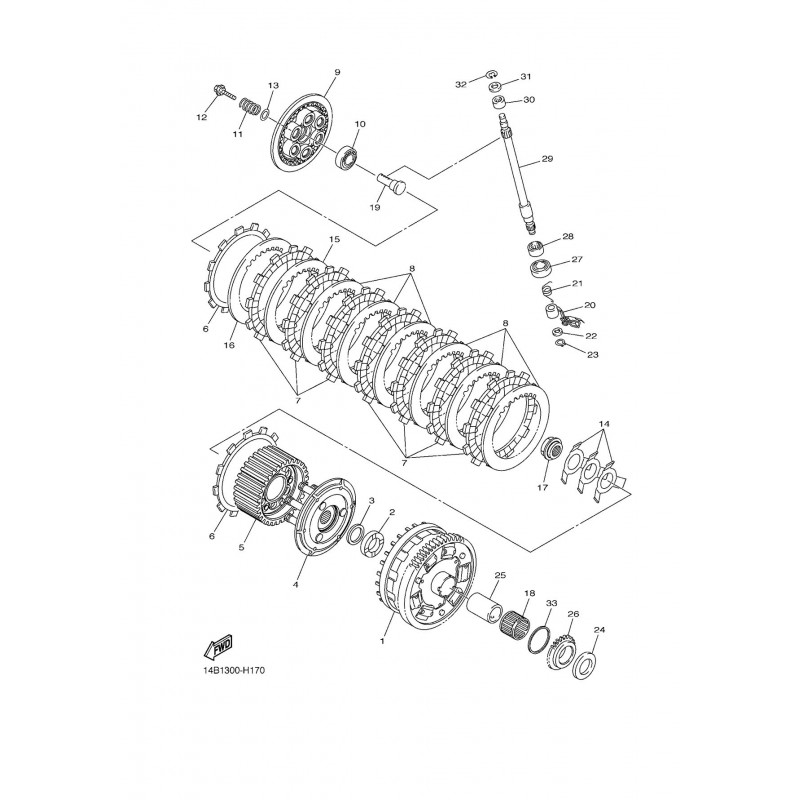

Part ID:	Part Number:	Part Desc:	Remark:	Qty:	Price:
1	14B-16150-10	PRIMARY DRIVEN GEAR COMP.			YEN 48,800.00
2	4C8-16154-00	PLATE, THRUST 1			YEN 1,840.00
3	90208-25002	WASHER, CONICAL SPRING			YEN 480.00
4	14B-16360-00	PRESSURE PLATE ASSY 2			YEN 32,800.00
5	14B-16370-00	CLUTCH BOSS ASSY			YEN 27,200.00
6	14B-16330-00	PLATE, FRICTION 2			YEN 2,400.00
7	5VY-16321-00	PLATE, FRICTION			YEN 1,200.00
8	5VY-16325-00	PLATE, CLUTCH 2			YEN 720.00
9	14B-16351-00	PLATE, PRESSURE 1			YEN 6,400.00
10	93306-00304	BEARING			YEN 1,600.00
11	90501-240A2	SPRING, COMPRESSION			YEN 560.00
12	90159-06026	SCREW, WITH WASHER			YEN 240.00
13	14B-16384-00	PLATE, SEAT			YEN 160.00
14	2S3-16539-00	SPRING			YEN 1,040.00
15	5VY-16325-00	PLATE, CLUTCH 2			YEN 720.00
	4B1-16325-00	PLATE, CLUTCH 2			YEN 6,400.00
16	5VY-16325-00	PLATE, CLUTCH 2			YEN 720.00
	4B1-16324-00	PLATE, CLUTCH 1			YEN 240.00
	4B1-16325-00	PLATE, CLUTCH 2			YEN 6,400.00
17	4C8-16377-00	NUT, LOCK			YEN 3,200.00
18	93310-23168	BEARING			YEN 1,440.00
19	4XV-16356-01	ROD, PUSH 1			YEN 2,000.00
20	14B-16340-00	PUSH LEVER ASSY			YEN 1,280.00
21	90508-16041	SPRING, TORSION			YEN 240.00
22	90201-10029	WASHER, PLATE			YEN 160.00
23	99009-10400	CIRCLIP			YEN 80.00
24	363-16154-00	PLATE, THRUST 1			YEN 400.00
25	14B-16181-00	SPACER 1			YEN 3,200.00
26	14B-13354-00	SPROCKET, DRIVE			YEN 8,800.00
27	93102-15212	OIL SEAL			YEN 320.00
28	93315-21570	BEARING			YEN 560.00
29	5VY-16382-10	AXLE, PUSH LEVER			YEN 4,000.00
30	93317-11096	BEARING			YEN 560.00
31	92907-08600	WASHER, PLATE			YEN 80.00
32	99001-07600	CIRCLIP			YEN 80.00
33	90201-44008	WASHER, PLATE			YEN 480.00
