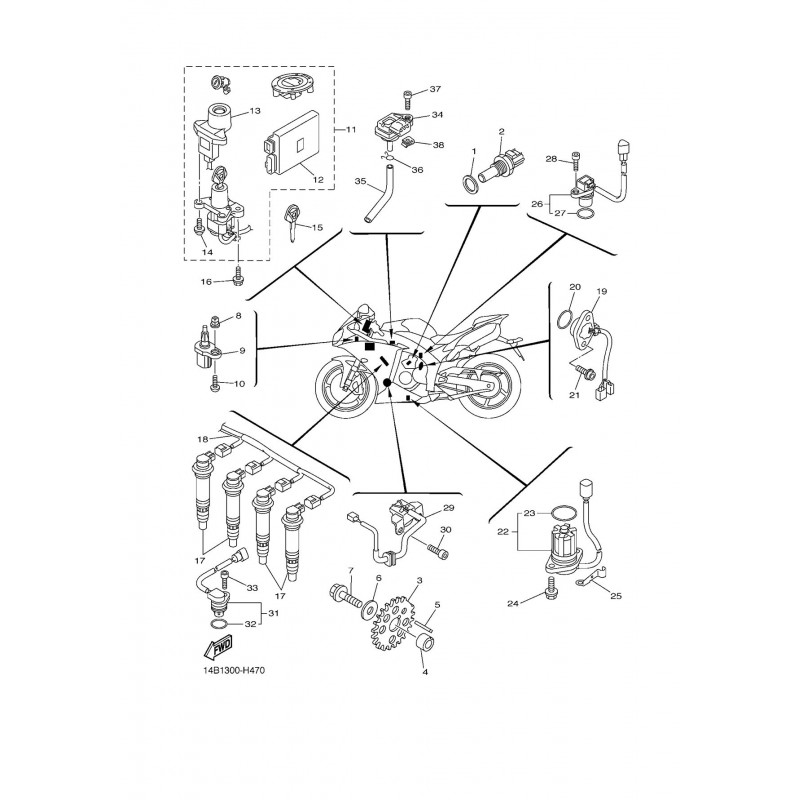

| Part ID: |
Part Number: |
Part Desc: |
Remark: |
Qty: |
Price: |
| 1 |
90201-12790 |
WASHER, PLATE |
|
|
YEN 160.00 |
| 2 |
8CC-85790-01 |
THERMOSENSOR ASSY |
|
|
YEN 4,800.00 |
| 3 |
14B-81673-00 |
ROTOR |
|
|
YEN 1,680.00 |
| 4 |
90387-11006 |
COLLAR |
|
|
YEN 1,280.00 |
| 5 |
90282-03005 |
KEY, STRAIGHT |
|
|
YEN 640.00 |
| 6 |
90201-10034 |
WASHER, PLATE |
|
|
YEN 160.00 |
| 7 |
90105-10290 |
BOLT, FLANGE |
|
|
YEN 400.00 |
| 8 |
90480-08005 |
GROMMET |
|
|
YEN 80.00 |
| 9 |
8FP-85886-00 |
SENSOR, AIR TEMPERATURE |
|
|
YEN 1,840.00 |
| 10 |
97702-50016 |
SCREW, TAPPING |
|
|
YEN 80.00 |
| 11 |
14B-W8250-40 |
MAIN SW. IMMOBILIZER KIT |
|
|
YEN 257,600.00 |
|
14B-W8250-50 |
MAIN SW. IMMOBILIZER KIT |
|
|
YEN 251,200.00 |
| 12 |
14B-8591A-00 |
.ENGINE CONTROL UNIT ASSY |
|
|
YEN 189,600.00 |
|
14B-8591A-10 |
.ENGINE CONTROL UNIT ASSY |
|
|
YEN 184,800.00 |
| 13 |
14B-8255P-20 |
.IMMOBILIZER. UNIT COMP. |
|
|
YEN 30,400.00 |
| 14 |
5SL-82113-01 |
.SCREW |
|
|
YEN 160.00 |
| 15 |
5SL-82511-08 |
BLANK KEY |
|
|
YEN 2,000.00 |
| 16 |
90109-080G5 |
BOLT |
|
|
YEN 160.00 |
| 17 |
14B-82310-00 |
IGNITION COIL ASSY |
|
|
YEN 12,000.00 |
| 18 |
14B-82309-00 |
WIRE, SUB LEAD |
|
|
YEN 8,000.00 |
| 19 |
14B-82540-01 |
NEUTRAL SWITCH ASSY |
|
|
YEN 7,200.00 |
| 20 |
93210-21001 |
O-RING |
|
|
YEN 80.00 |
| 21 |
90110-05067 |
BOLT, HEXAGON SOCKET HEAD |
|
|
YEN 80.00 |
| 22 |
14B-85720-00 |
OIL LEVEL GAUGE ASSY |
|
|
YEN 5,600.00 |
| 23 |
5VY-8A8E0-00 |
.O-RING |
|
|
YEN 480.00 |
| 24 |
95022-06016 |
BOLT, FLANGE |
|
|
YEN 80.00 |
| 25 |
90465-08053 |
CLAMP |
|
|
YEN 160.00 |
| 26 |
14B-83755-00 |
SENSOR, SPEED |
|
|
YEN 8,800.00 |
| 27 |
4D9-81168-00 |
.O-RING |
|
|
YEN 240.00 |
| 28 |
90110-06161 |
BOLT, HEXAGON SOCKET HEAD |
|
|
--- |
| 29 |
14B-81670-00 |
PICK-UP ASSY |
|
|
YEN 13,600.00 |
| 30 |
90110-06168 |
BOLT, HEXAGON SOCKET HEAD |
|
|
YEN 80.00 |
| 31 |
5VY-85896-00 |
SENSOR, CAM POSITION |
|
|
YEN 9,600.00 |
| 32 |
4D9-81168-00 |
.O-RING |
|
|
YEN 240.00 |
| 33 |
90110-06175 |
BOLT, HEXAGON SOCKET HEAD |
|
|
--- |
| 34 |
2C0-82380-00 |
SENSOR, PRESSURE |
|
|
YEN 12,800.00 |
| 35 |
90445-08028 |
HOSE |
|
|
YEN 80.00 |
| 36 |
90467-08021 |
CLIP |
|
|
YEN 160.00 |
| 37 |
91312-05020 |
BOLT |
|
|
YEN 80.00 |
| 38 |
90183-05076 |
NUT,SPRING |
|
|
YEN 160.00 |
