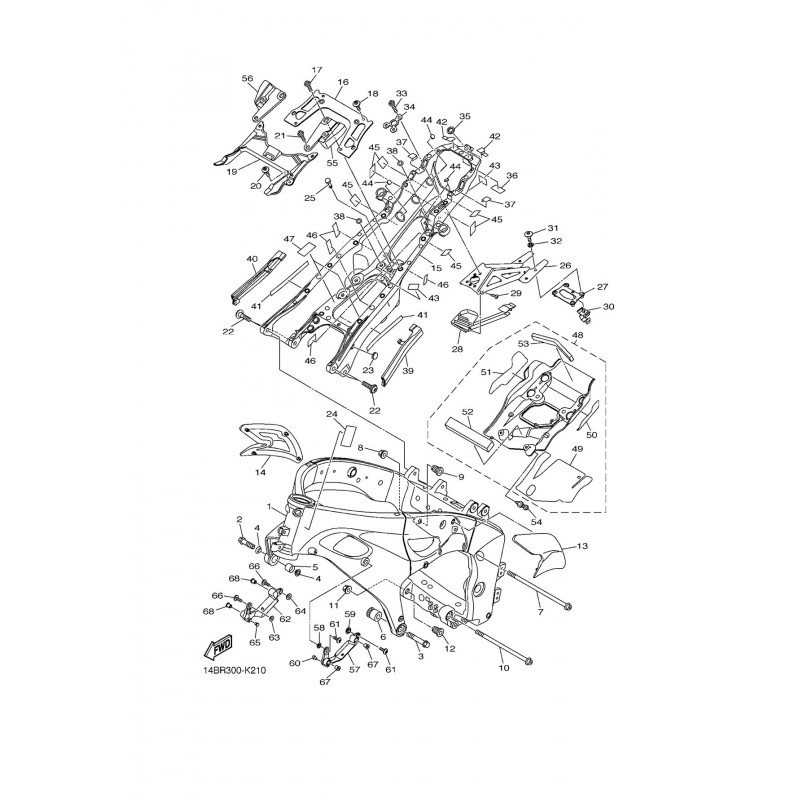

FRAME
Price: ---
Available Options
| Part ID: | Part Number: | Part Desc: | Remark: | Qty: | Price: |
| 1 | 14B-21110-00 | FRAME COMP. | YEN 272,800.00 | ||
| 2 | 90105-12062 | BOLT, FLANGE | YEN 240.00 | ||
| 3 | 95817-12080 | BOLT, FLANGE | YEN 320.00 | ||
| 4 | 14B-21414-00 | BOSS, ENGINE MOUNT | YEN 1,040.00 | ||
| 5 | 14B-21424-00 | BOSS, ENGINE MOUNT | YEN 1,840.00 | ||
| 6 | 14B-2141R-00 | BOSS | YEN 3,200.00 | ||
| 7 | 90110-10024 | BOLT, HEXAGON SOCKET HEAD | YEN 640.00 | ||
| 8 | 90179-10028 | NUT | YEN 400.00 | ||
| 9 | 14B-21495-00 | BOLT, ENGINE ADJUSTING | YEN 1,120.00 | ||
| 10 | 90110-10023 | BOLT, HEXAGON SOCKET HEAD | YEN 1,120.00 | ||
| 11 | 90179-10028 | NUT | YEN 400.00 | ||
| 12 | 14B-21495-00 | BOLT, ENGINE ADJUSTING | YEN 1,120.00 | ||
| 13 | 14B-24121-00 | SEAT, KNEE GRIP 1 | YEN 2,400.00 | ||
| 14 | 14B-24122-00 | SEAT, KNEE GRIP 2 | YEN 2,400.00 | ||
| 15 | 14B-21190-00 | REAR FRAME COMP. | YEN 75,200.00 | ||
| 16 | 14B-21131-00 | BRACKET | YEN 4,000.00 | ||
| 17 | 90109-06015 | BOLT | YEN 160.00 | ||
| 18 | 90111-06051 | BOLT,HEX. SOCKET BUTTON | YEN 80.00 | ||
| 19 | 14B-21214-00 | REINF., FRAME RR. | YEN 4,800.00 | ||
| 20 | 90111-06051 | BOLT,HEX. SOCKET BUTTON | YEN 80.00 | ||
| 21 | 90109-06015 | BOLT | YEN 160.00 | ||
| 22 | 14B-2585H-09 | SCREW,SET | YEN 320.00 | ||
| 23 | 90338-15004 | PLUG | YEN 80.00 | ||
| 24 | 14B-2118N-10 | LABEL | YEN 240.00 | ||
| 25 | 90269-04025 | RIVET | YEN 160.00 | ||
| 26 | 14B-21640-00 | REAR STAY COMP. | YEN 8,000.00 | ||
| 27 | 14B-21682-00 | STAY, PLATE | YEN 2,400.00 | ||
| 28 | 14B-2163A-00 | COVER, REAR FENDER 1 | YEN 560.00 | ||
| 29 | 97702-50016 | SCREW, TAPPING | YEN 80.00 | ||
| 30 | 90464-14228 | CLAMP | YEN 240.00 | ||
| 31 | 90111-06129 | BOLT,HEX. SOCKET BUTTON | YEN 160.00 | ||
| 32 | 90387-061Y1 | COLLAR | YEN 160.00 | ||
| 33 | 90110-06156 | BOLT, HEXAGON SOCKET HEAD | YEN 80.00 | ||
| 34 | 14B-21615-00 | WASHER, SPECIAL 1 | YEN 720.00 | ||
| 35 | 13S-21746-00 | DAMPER | YEN 80.00 | ||
| 36 | 14B-22873-00 | SEAL 1 | YEN 240.00 | ||
| 37 | 14B-22874-00 | SEAL 2 | YEN 160.00 | ||
| 38 | 13S-2173M-00 | SEAL 3 | YEN 320.00 | ||
| 39 | 14B-22876-00 | SEAL 4 | YEN 720.00 | ||
| 40 | 14B-22877-00 | SEAL, 5 | YEN 720.00 | ||
| 41 | 13S-21567-00 | TAPE, 2 | YEN 480.00 | ||
| 42 | 14B-22879-00 | SEAL, 7 | YEN 240.00 | ||
| 43 | 14B-28425-00 | DAMPER 3 | YEN 240.00 | ||
| 44 | 14B-28217-00 | DAMPER 1 | YEN 80.00 | ||
| 45 | 14B-28227-00 | DAMPER 2 | YEN 80.00 | ||
| 46 | 14B-28237-00 | DAMPER 3 | YEN 80.00 | ||
| 47 | 14B-28435-00 | DAMPER 4 | YEN 160.00 | ||
| 48 | 14B-2110N-20 | COVER ASSY 2 | YEN 4,800.00 | ||
| 49 | 14B-2112B-00 | .SEAT 1 | YEN 560.00 | ||
| 50 | 14B-2113C-00 | .SHEET,2 | YEN 160.00 | ||
| 51 | 14B-2113D-00 | .SHEET, 3 | YEN 160.00 | ||
| 52 | 90520-15001 | .DAMPER, PLATE | YEN 240.00 | ||
| 53 | 90520-15004 | .DAMPER, PLATE | YEN 160.00 | ||
| 54 | 90269-06016 | RIVET | YEN 160.00 | ||
| 55 | 14B-2172E-10 | STAY, SIDE COVER 1 | YEN 1,120.00 | ||
| 56 | 14B-2174E-10 | STAY, SIDE COVER 2 | YEN 1,120.00 | ||
| 57 | 14B-2836F-00 | BRACKET 3 | YEN 240.00 | ||
| 58 | 90387-06217 | COLLAR | YEN 1,040.00 | ||
| 59 | 90560-08251 | SPACER | YEN 160.00 | ||
| 60 | 90338-06018 | PLUG | YEN 240.00 | ||
| 61 | 90111-06051 | BOLT,HEX. SOCKET BUTTON | YEN 80.00 | ||
| 62 | 14B-2836G-00 | BRACKET 4 | YEN 240.00 | ||
| 63 | 90387-06217 | COLLAR | YEN 1,040.00 | ||
| 64 | 90560-08251 | SPACER | YEN 160.00 | ||
| 65 | 90338-06018 | PLUG | YEN 240.00 | ||
| 66 | 90111-06051 | BOLT,HEX. SOCKET BUTTON | YEN 80.00 | ||
| 67 | 90179-05523 | NUT | YEN 320.00 | ||
| 68 | 90179-05523 | NUT | YEN 320.00 |
