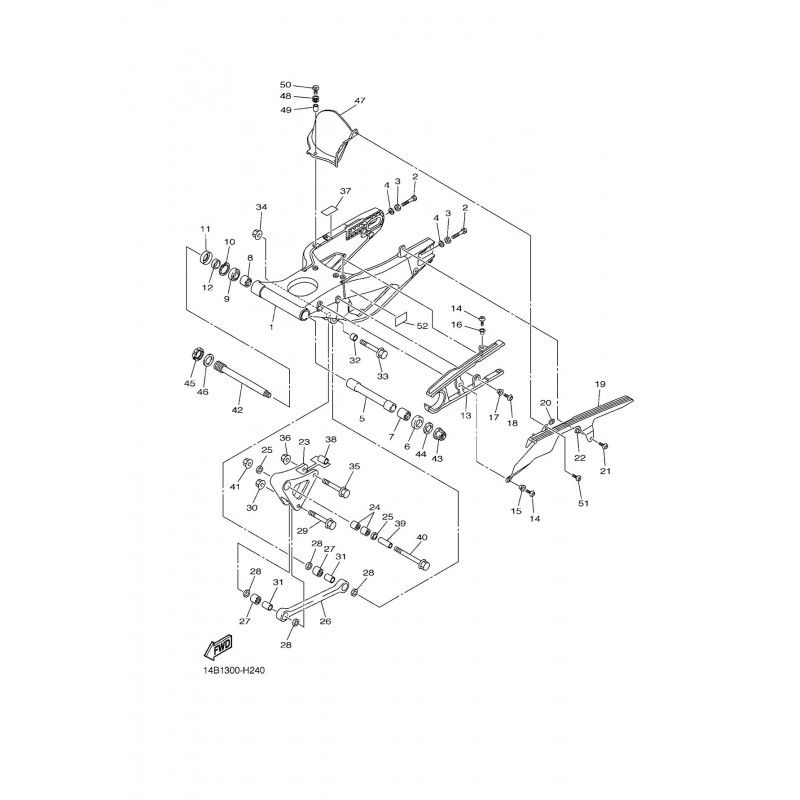

REAR ARM
Price: ---
Available Options
| Part ID: | Part Number: | Part Desc: | Remark: | Qty: | Price: |
| 1 | 14B-22110-00-P0 | REAR ARM COMP. | YEN 152,000.00 | ||
| 2 | 90101-08013 | BOLT | --- | ||
| 3 | 95302-08600 | NUT | YEN 160.00 | ||
| 4 | 90201-08057 | WASHER, PLATE | YEN 160.00 | ||
| 5 | 14B-22184-00 | BUSH | YEN 4,000.00 | ||
| 6 | 5VY-22128-00 | COVER, THRUST 1 | YEN 880.00 | ||
| 7 | 93317-52897 | BEARING | YEN 3,200.00 | ||
| 8 | 93317-428U8 | BEARING | YEN 3,200.00 | ||
| 9 | 93306-97202 | BEARING | YEN 2,400.00 | ||
| 10 | 99009-42500 | CIRCLIP | YEN 240.00 | ||
| 11 | 93106-28004 | OIL SEAL | YEN 320.00 | ||
| 12 | 90387-22023 | COLLAR | YEN 800.00 | ||
| 13 | 14B-22151-00 | SEAL, GUARD | YEN 4,800.00 | ||
| 14 | 92012-06016 | BOLT, BUTTON HEAD | YEN 80.00 | ||
| 15 | 90387-062X0 | COLLAR | YEN 1,040.00 | ||
| 16 | 90387-06066 | COLLAR | YEN 80.00 | ||
| 17 | 90387-06066 | COLLAR | YEN 80.00 | ||
| 18 | 92012-06016 | BOLT, BUTTON HEAD | YEN 80.00 | ||
| 19 | 14B-22311-00 | CASE, CHAIN | YEN 1,520.00 | ||
| 20 | 90183-05076 | NUT,SPRING | YEN 160.00 | ||
| 21 | 90149-06298 | SCREW | YEN 240.00 | ||
| 22 | 90387-07717 | COLLAR | YEN 160.00 | ||
| 23 | 14B-2217A-00 | ARM, RELAY | YEN 9,600.00 | ||
| 24 | 93315-31758 | BEARING | YEN 1,280.00 | ||
| 25 | 93109-17071 | OIL SEAL | YEN 240.00 | ||
| 26 | 14B-2217M-00 | ARM 1 | YEN 4,800.00 | ||
| 27 | 93315-31758 | BEARING | YEN 1,280.00 | ||
| 28 | 93109-17071 | OIL SEAL | YEN 240.00 | ||
| 29 | 90105-10017 | BOLT, FLANGE | YEN 960.00 | ||
| 30 | 95602-10200 | NUT, U FLANGE | YEN 160.00 | ||
| 31 | 90387-1012A | COLLAR | YEN 480.00 | ||
| 32 | 90387-1013U | COLLAR | YEN 960.00 | ||
| 33 | 90105-10018 | BOLT, FLANGE | YEN 960.00 | ||
| 34 | 95602-10200 | NUT, U FLANGE | YEN 160.00 | ||
| 35 | 90105-10017 | BOLT, FLANGE | YEN 960.00 | ||
| 36 | 95602-10200 | NUT, U FLANGE | YEN 160.00 | ||
| 37 | 2C0-21566-00 | TAPE, 1 | YEN 160.00 | ||
| 38 | 90387-1012A | COLLAR | YEN 480.00 | ||
| 39 | 90387-10034 | COLLAR | YEN 800.00 | ||
| 40 | 90105-10150 | BOLT, FLANGE | YEN 320.00 | ||
| 41 | 95602-10200 | NUT, U FLANGE | YEN 160.00 | ||
| 42 | 14B-22141-00 | SHAFT, PIVOT | YEN 7,200.00 | ||
| 43 | 90185-20008 | NUT, SELF-LOCKING | YEN 1,920.00 | ||
| 44 | 90201-20026 | WASHER, PLATE | YEN 640.00 | ||
| 45 | 4C8-22252-00 | NUT | YEN 880.00 | ||
| 46 | 90201-30016 | WASHER, PLATE | YEN 640.00 | ||
| 47 | 14B-21650-00 | REAR FENDER COMP. | YEN 1,280.00 | ||
| 48 | 90480-12005 | GROMMET | YEN 160.00 | ||
| 49 | 90387-06057 | COLLAR | YEN 160.00 | ||
| 50 | 90149-06302 | SCREW | YEN 240.00 | ||
| 51 | 90111-05002 | BOLT,HEX. SOCKET BUTTON | YEN 80.00 | ||
| 52 | 14B-21668-00 | LABEL, TIRE | YEN 160.00 |
