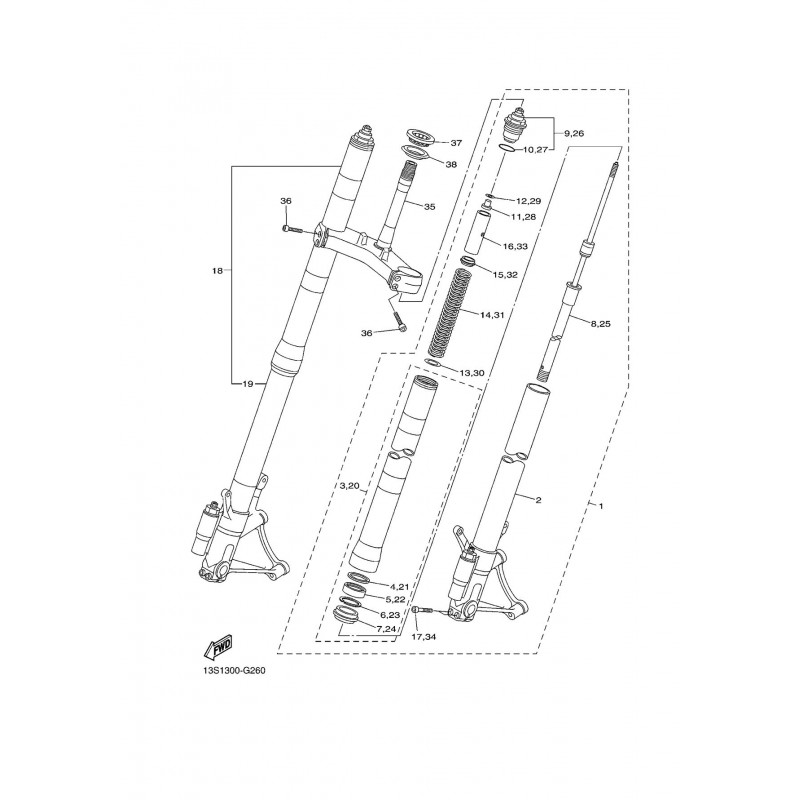

FRONT FORK
Price: ---
Available Options
| Part ID: | Part Number: | Part Desc: | Remark: | Qty: | Price: |
| 1 | 13S-23102-02 | FRONT FORK ASSY (L.H) | YEN 95,200.00 | ||
| 13S-23102-12 | FRONT FORK ASSY (L.H) | YEN 95,200.00 | |||
| 2 | 13S-23110-02 | .INNER TUBE COMP.1 | YEN 42,400.00 | ||
| 3 | 13S-23106-00 | .OUTER TUBE COMP. | YEN 22,400.00 | ||
| 13S-23106-10 | .OUTER TUBE COMP. | YEN 22,400.00 | |||
| 4 | 3VD-23115-00 | ..GUIDE, COVER UPPER | YEN 320.00 | ||
| 5 | 5VU-23145-00 | ..OIL SEAL | YEN 880.00 | ||
| 6 | 3VD-23156-00 | ..RING, SNAP | YEN 160.00 | ||
| 7 | 3VD-23144-00 | ..SEAL, DUST | YEN 880.00 | ||
| 8 | 13S-23170-00 | .CYLINDER COMP., FRONT FORK | YEN 29,600.00 | ||
| 9 | 13S-23111-00 | .BOLT, CAP | YEN 12,000.00 | ||
| 10 | 93210-41N50 | ..O-RING | YEN 240.00 | ||
| 11 | 13S-23393-00 | .NUT, SPECIAL | YEN 640.00 | ||
| 12 | 13S-2332N-00 | .PLATE, VALVE 2 | YEN 160.00 | ||
| 13 | 2C0-23143-00 | .SEAT, SPRING LOWER | YEN 160.00 | ||
| 14 | 13S-23141-00 | .SPRING, FRONT FORK | YEN 1,920.00 | ||
| 15 | 13S-23142-00 | .SEAT, SPRING UPPER | YEN 160.00 | ||
| 16 | 13S-23118-00 | .SPACER | YEN 400.00 | ||
| 17 | 91314-08040 | .BOLT, HEXAGON SOCKET HEAD | YEN 160.00 | ||
| 18 | 13S-23103-02 | FRONT FORK ASSY (R.H) | YEN 95,200.00 | ||
| 13S-23103-12 | FRONT FORK ASSY (R.H) | YEN 95,200.00 | |||
| 19 | 13S-23120-02 | .INNER TUBE COMP.2 | YEN 42,400.00 | ||
| 20 | 13S-23106-00 | .OUTER TUBE COMP. | YEN 22,400.00 | ||
| 13S-23106-10 | .OUTER TUBE COMP. | YEN 22,400.00 | |||
| 21 | 3VD-23115-00 | ..GUIDE, COVER UPPER | YEN 320.00 | ||
| 22 | 5VU-23145-00 | ..OIL SEAL | YEN 880.00 | ||
| 23 | 3VD-23156-00 | ..RING, SNAP | YEN 160.00 | ||
| 24 | 3VD-23144-00 | ..SEAL, DUST | YEN 880.00 | ||
| 25 | 13S-23170-00 | .CYLINDER COMP., FRONT FORK | YEN 29,600.00 | ||
| 26 | 13S-23111-00 | .BOLT, CAP | YEN 12,000.00 | ||
| 27 | 93210-41N50 | ..O-RING | YEN 240.00 | ||
| 28 | 13S-23393-00 | .NUT, SPECIAL | YEN 640.00 | ||
| 29 | 13S-2332N-00 | .PLATE, VALVE 2 | YEN 160.00 | ||
| 30 | 2C0-23143-00 | .SEAT, SPRING LOWER | YEN 160.00 | ||
| 31 | 13S-23141-00 | .SPRING, FRONT FORK | YEN 1,920.00 | ||
| 32 | 13S-23142-00 | .SEAT, SPRING UPPER | YEN 160.00 | ||
| 33 | 13S-23118-00 | .SPACER | YEN 400.00 | ||
| 34 | 91314-08040 | .BOLT, HEXAGON SOCKET HEAD | YEN 160.00 | ||
| 35 | 13S-23340-00 | UNDER BRACKET COMP. | YEN 45,600.00 | ||
| 36 | 91314-08030 | BOLT, HEXAGON SOCKET HEAD | YEN 160.00 | ||
| 37 | 93399-99957 | BEARING | YEN 4,800.00 | ||
| 38 | 3FV-23462-00 | SEAL, STEERING | YEN 1,520.00 |
